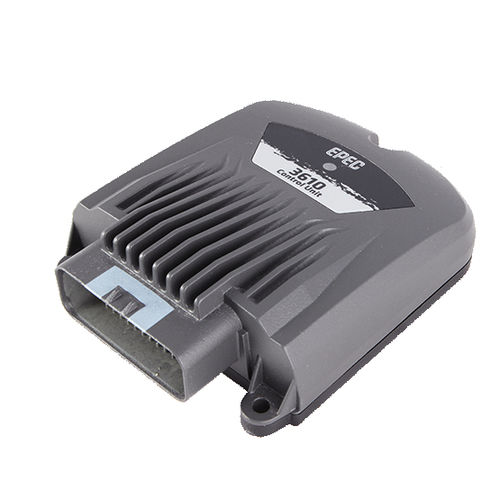

Embedded electronic control unit 3610

Epec 3610 Control Unit is a compact controller containing 22 I/O pins, all of them can be configured as input pins. Epec 3610 has an RS-232 serial port and as an assembly variant, I/O interface that is compatible with the previous Epec 2038 Control Unit. However, Epec 3610 also comes with completely new features like high-side current measurement and an internal 3-axis accelerometer, for example, for levelling purposes. Epec 3610 also has an option for accurate Pt1000 measurement. The unit’s casing works to protect the electronics against mechanical wear. The leak-proof zinc/plastic housing has also been widely tested against different environmental conditions. The unit is equipped with a signal LED for diagnostics. One CAN is also equipped with double pins to make cabling easier since there is no need for branches in the wire harness. Processor: 16/32 bit CPU Flash memory: 1,6 Mbyte RAM: 138 kbyte PLCopen application size: up to 768 kbyte CAN: 1 or 2 RS-232 (optional) Accelerometer (optional) I/O: 22 (14 inputs + 8 outputs) IP class: IP67 Temperature range: -40 … + 85 °C -40 … +185 °F Connectors: 1 x AMP 35 CODESYS version: 2.3 Supported CAN protocols: CANopen, SAEJ1939, ISOBUS Two-colored diagnostic LED for quick status check and fault detection Keywords: programmable automation controller, control module, ECU, I/O module
