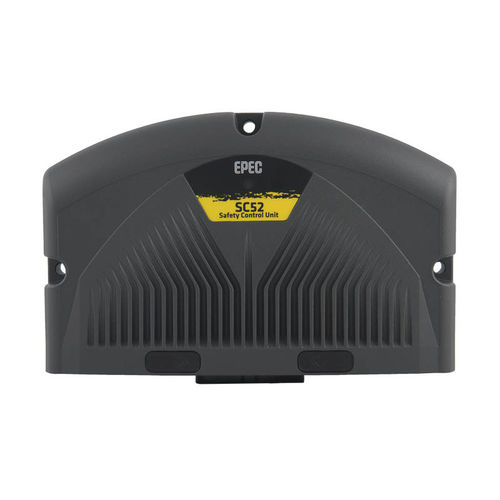

Embedded electronic control unit SC52

safety

Epec SC52 is a state-of-the-art controller for safety-related systems in mobile machinery. Outputs in SC52 have a high-side current measurement, so only one I/O pin is needed to control proportional valves. SC52 offers a flexible solution for software-based safety function implementation. Together with the SC52 controller, Epec offers a set of pre-certified PLCopen application libraries in order to reduce customer’s safety related software development effort. Up to SIL2 (IEC 61508:2010 and IEC 62061:2005) and PLd/Cat 3 (ISO 13849-1:2015), as a stand-alone controller Support for Cat2 architecture when using intelligent safety certified sensors Processor: 32 bit multicore CPU with lock-step and memory protection Flash memory: 8 Mbyte RAM: 512 kbyte PLCopen application size: up to 1024 kbyte CAN: 2 I/O: 22 (14 inputs + 8 outputs) IP class: IP67 Temperature range: -40 … + 85 °C -40 … +185 °F Connectors: 1 x AMP 35 CODESYS version: 3.5 SP10 CODESYS V3 Safety SIL 2 programming Supported CAN protocols: CANopen, CANopen Safety, SAEJ1939 CANopen Safety protocol for safety-related communication according to EN50325-5 Extensive set of pre-certified PLCopen libraries for safety related applications Three-colored diagnostic LED for quick status check and fault detection
