Embedded electronic control unit 4602

embedded electronic control unit
embedded electronic control unit
embedded electronic control unit
embedded electronic control unit
embedded electronic control unit
Add to favorites
Compare this product


Characteristics

Options
embedded

Description

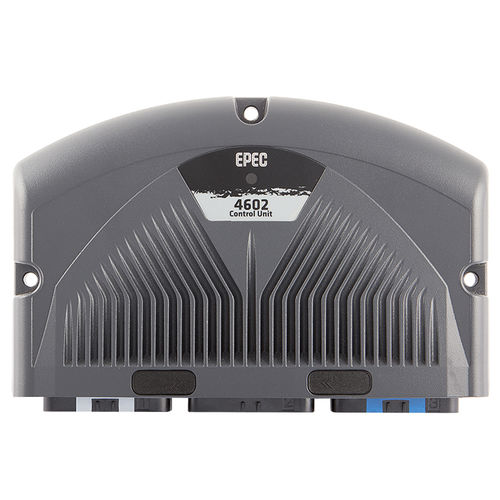

Epec 4602 Control Unit has a wide range of programmable I/Os for different implementations. Epec 4602 can control 10 hydraulic blocks simultaneously by using 20 PWM outputs and 10 feedbacks. It can be used as a stand-alone controller or as part of decentralized control system. The unit’s sleek shaped casing works to protect the electronics against mechanical wear. The leak-proof aluminum/plastic housing has also been widely tested against different environmental conditions. The unit is equipped with a signal LED for diagnostics. One CAN is also equipped with double pins to make cabling easier since there is no need for branches in the wire harness. Processor: 16/32 bit CPU Flash memory: 1,6 Mbyte RAM: 138 kbyte PLCopen application size: up to 768 kbyte CAN: 2 I/O: 68 (44 inputs +24 outputs) IP class: IP67 Temperature range: -40 … + 85 °C -40 … +185 °F Connectors: 3 x AMP 35 CODESYS version: 2.3 Supported CAN protocols: CANopen, SAEJ1939 Two-colored diagnostic LED for quick status check and fault detection Keywords: programmable automation controller, control module, ECU, I/O module
