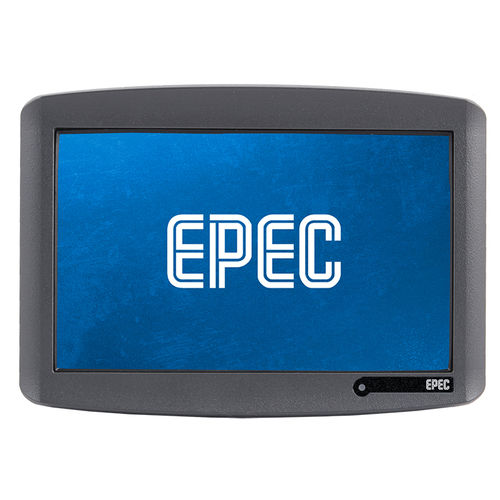

Display HMI 6107

resistive touch screenembedded800 x 480

Epec 6107 Display Unit enables remote connectivity and has an excellent sunlight readability, wide viewing angles and high-end graphics. Epec 6107 also has versatile communications interfaces and it offers multiple possibilities for remote access. With its 7″ resistive touch screen it is compact, yet big enough to fit many purposes. Epec 6107 supports both panel and pedestal mounting. Together with Epec’s IoT Services you’ll get the fastest to configure and most reliable IoT system/remote management solution in the market. Processor: 32 bit CPU Flash memory: 4-16 GByte RAM: 1024 MByte Display size and type: Resistive GFG, 7”, TFT color LCD Display resolution: WVGA 800 x 480 (5:3) Display brightness: 800 cd/m² CAN: 2 Ethernet: 2 USB: 2 RS-232: 1 Camera: 2 GSM / UMTS / HSPA+ WLAN GPS / GLONASS I/O: 5 (3 inputs and 2 outputs or 5 inputs and 0 outputs) IP class: IP65 Temperature range: -30… +70 °C -22…+158 °F -30… +55 °C with 2G/3G/GPS option -22… +131 °F with 2G/3G/GPS option -30… +60 °C with WLAN option -22… +140 °F with WLAN option Connectors: 1 x AMP23, 2 x M12, 3 x SMA CODESYS version: 3.5 SP13 Supported communication protocols: CANopen, SAEJ1939, MODBUS, NMEA 2000 Keywords: embedded display, display unit, HMI, fleet management
