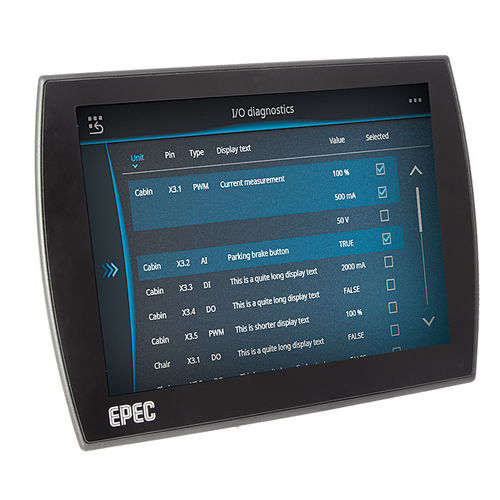

Display HMI 6112

projected capacitive touchscreenembedded1024 x 768

A big screen to rule your machine! Epec 6112 Display Unit has a capacitive 1024 x 768 resolution touch screen and versatile possibilities for remote connectivity. It also has a bunch of other communication interfaces to fit different purposes. Together with Epec’s IoT Services you’ll get the fastest to configure and most reliable IoT system/remote management solution in the market. Processor: 32 bit CPU Flash memory: 4-16 GByte RAM: 1024 MByte Display size and type: Capacitive (PCAP), 12,1”, TFT color LCD Resolution: XGA 1024x 768 (4:3) Display brightness: 600 cd/m² CAN: 2 Ethernet: 2 USB: 2 RS-232: 1 Camera: 2 I/O: 5 (3 inputs and 2 outputs or 5 inputs and 0 outputs) Keywords: embedded display, display unit, HMI IP class: IP65 Temperature range: -30… +70 °C -22…+158 °F Connectors: 1 x AMP23, 3 x M12 CODESYS version: 3.5 Supported communication protocols: CANopen, SAEJ1939, MODBUS, NMEA 2000 Keywords: embedded display, display unit, HMI, fleet management
