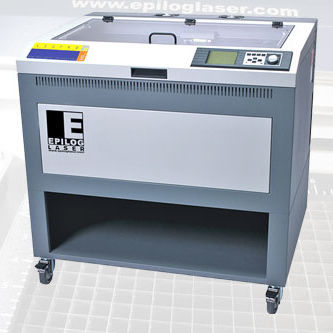

CO2 laser cutting machine Legend 32
for acrylicsfor aluminumfor brass

CO2 laser cutting machine
CO2 laser cutting machine
Add to favorites
Compare this product


Characteristics

Technology
CO2 laser
Material
for aluminum, for brass, for rubber, for acrylics, for wood, for glass
Product handled
panel
Control type
with digital assistance
Associated function
engraving
Phase
single-phase
Other characteristics
high-speed, precision, modular, combined
X travel

609 mm
(23.98 in)

Y travel

508 mm
(20 in)

Z travel

228 mm
(9 in)

Resolution

Max.: 1,200 dpi

Min.: 150 dpi

Overall length

826 mm
(33 in)

Overall width

965 mm
(38 in)

Height

1,016 mm
(40 in)

Weight

160 kg
(352.74 lb)

Description

Technical specifications of our Legend 32. The Legend 32 is a legacy system of Epilog Laser. See specifications on this unit below. Laser Control Display Panel - 4" x 3" LCD displays job graphic, stored file names, speed, power, run time, and more. Drop-down menus provide user control of all laser settings, calibration, and special features. Intelligent Memory Buffer - Store unlimited files up to 32 MB. Rolling buffer allows files of any size (32 MB and larger) to be engraved. Operating Modes - Optimized raster engraving, vector cutting or combined raster/vector mode. Motion Control System - High-speed, continuous-loop, DC servo motors using linear encoder technology for precise positioning. Laser Source - State-of-the-art, digitally controlled, air-cooled CO2 laser tubes are fully modular, permanently aligned and field replaceable. X-Axis Bearings - Ground and polished stainless steel long-life bearing system. Belts - Advanced B-Style doublewide Kevlar precision drive belts. Speed and Power Controls - Computer or manually controlled speed and power in 1% increments to 100%. Vector color mapping links speed and power settings to any RGB settings. - Print Interface - 10 Base T Ethernet or Parallel connection. Compatible with Windows XP/2000.
