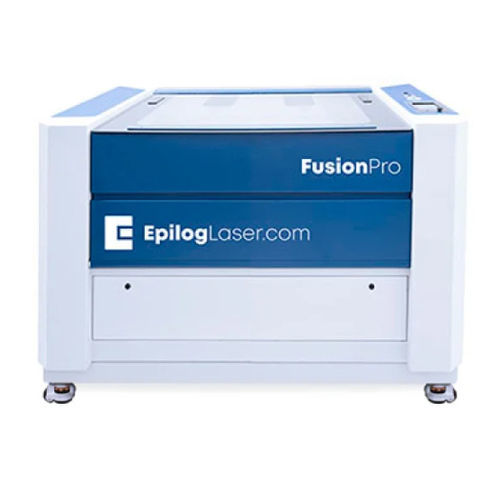

CO2 laser engraving machine Fusion Pro 32woodplasticglass
Add to favorites
Compare this product
Characteristics
- Technique
- CO2 laser
- Material
- wood, plastic, glass, aluminum, marble, fabric, brass, acrylic
- Applications
- industrial, for wood
- Other characteristics
- high-speed, air-cooled, stainless steel, computer-controlled
- Power
50 W, 60 W, 80 W, 120 W
(0.07 hp, 0.08 hp, 0.11 hp, 0.16 hp)- X travel
812 mm
(31.97 in)- Y travel
508 mm
(20 in)
Description
Technical specifications of our Fusion Pro 32 laser system. The Fusion Pro 32 is a legacy system of Epilog Laser. See specifications on this unit below.
Software -
Laser Dashboard™, Epilog Job Manager™
Intelligent Memory Capacity -
Multiple file storage up to 64 MB. Engrave any file size.
Operating Modes -
Optimized Raster, Vector & Combined mode.
Motion Control System -
High-speed, continuous-loop, brushless DC servo motors using rotary encoding tech for precise positioning.
X-Axis Bearings -
Ground & polished stainless steel, Teflon-coated, self-lubricating bearings. Dual blocks on X-axis for greater rigidity.
Belts - Advanced
B-style double-wide Kevlar precision drive belts.
Speed and Power Control - 165 IPS with 5G acceleration. Computer-controlled in .001 increments up to 100%. Color mapping feature links Speed, Power, Frequency, Raster/Vector mode, & Air Assist On/Off settings to any RGB color.
Print Interface -
10Base-T Ethernet, USB, or Wireless connection.
Ventilation System -
One 400CFM upper output ports. One 400CFM lower port. Total 800CFM. All ports 4" (102mm) diameter.
