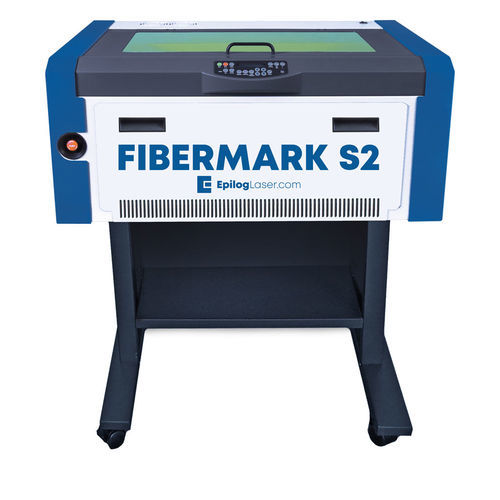

Pulsed fiber laser marking and engraving machine FiberMark S2
plasticmetalhigh-speed

pulsed fiber laser marking and engraving machine
pulsed fiber laser marking and engraving machine
Add to favorites
Compare this product


Characteristics

Technique
pulsed fiber laser
Material
metal, plastic
Other characteristics
air-cooled, high-speed
Power

30 W (0.04 hp)

X travel

610 mm (24 in)

Y travel

305 mm (12 in)

Description

Technical specifications of our FiberMark S2 system. The FiberMark S2 is a legacy system of Epilog Laser. See specifications on this unit below. Laser Type - Solid State Pulsed Ytterbium Fiber Laser (air-cooled). Mode of Operation - Pulsed 20-80 kHZ. Repetition Rate (Frequency) - 20 kHZ - 100 kHz depending on the laser wattage. Intelligent Memory Capacity - Multiple file storage up to 64 MB. Rolling buffer allows files of any size to be engraved. Air Assist - Attach the included air compressor to our Air Assist to remove heat and combustible gases from the marking surface by directing a constant stream of compressed air across the marking surface. Laser Dashboard - The Laser Dashboard™ controls your Epilog Laser's settings from a wide range of software packages - from design programs to spreadsheet applications to CAD drawing packages. Red Dot Pointer - Since the laser beam is invisible, the Red Dot Pointer allows you to have a visual reference for locating where the laser will fire. Relocatable Home - When engraving items that are not easily placed at the top corner of the laser, you can set a new home position by hand with the convenient Movable Home Position features on the FiberMark 24. Operating Modes - Raster, vector, or combined modes. Motion Control System - High-speed, continuous-loop, DC servomotors using linear and rotary encoding technology for precise positioning. X-Axis Bearings - Ground and polished stainless steel long-lasting bearing system. Belts - Advanced B-style Kevlar belts.
