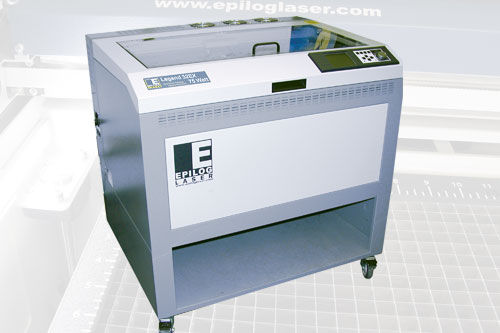

Technical specifications of our Legend 32EX. The 32EX is a legacy system of Epilog Laser. See specifications on this unit below.
Laser Control Display Panel -
4" x 3" LCD displays job graphic, stored file names, speed, power, run time, and more. Drop-down menus provide user control of all laser settings, calibration, and special features.
Intelligent Memory Buffer -
Store unlimited files up to 32 MB. Rolling buffer allows files of any size (32 MB and larger) to be engraved.
Operating Modes -
Optimized raster engraving, vector cutting or combined raster/vector mode.
Motion Control System -
High-speed, continuous-loop, DC servo motors using linear encoder technology for precise positioning.
Laser Source -
State-of-the-art, digitally controlled, air-cooled CO2 laser tubes are fully modular, permanently aligned and field replaceable.
X-Axis Bearings -
Ground and polished stainless steel long-life bearing system.
Belts - Advanced B-Style doublewide Kevlar precision drive belts.
Speed and Power Controls -
Computer or manually controlled speed and power in 1% increments to 100%. Vector color mapping links speed and power settings to any RGB settings.
Print Interface -
10 Base T Ethernet or Parallel connection. Compatible with Windows XP/2000.
