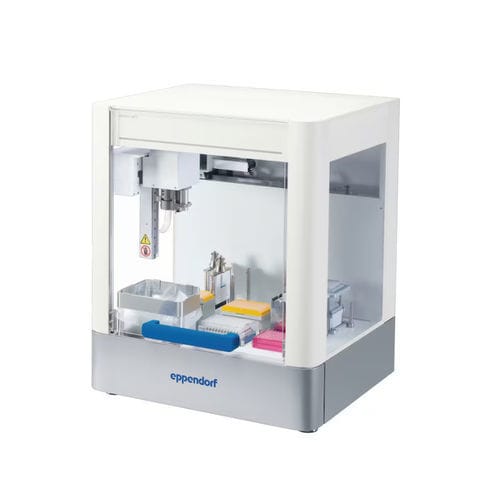

Microplate pipetting robot epMotion® 5073t

for lab automation

MultiCon PC, completely contained housing, ThermoMixer, epBlue software, keyboard, mouse, system for solid and liquid waste Technical Data Speed - 300 – 2,000 rpm Time range setting - 30 s – 120 min Max. load - 1,000 g / 2.2 lb Temperature range - 15 °C below RT to 95 °C Heating rate - 5 °C/min Cooling rate above RT - 3 °C/min Cooling rate below RT - 1 °C/min Volume range - 0.2 µL – 1 mL Operating mode - automation Autoclavable - yes (tools) Power supply - 100 – 240 V, 50 – 60 Hz Consumables - epT.I.P.S. motion tips as racks or reload Max. power consumption - 400 W Dimensions (W × D × H) - 68 × 62 × 81 cm / 27 × 25 × 32 in Product weight - 93 kg / 205 lb SLAS/ANSI positions - 6 Features 6 SLAS/ANSI deck positions and automatic tool exchange for 3 tools and gripper Volume range from 0.2 to 1,000 µL (depending on dispensing tools used) Compatible with tubes from 0.2 mL to 50 mL and micro and PCR plates up to 384 wells Optical sensor for detecting liquids, labware, tips MultiCon PC controller with simulation, network and software upgrade options Intuitive drag-and-drop-based software Optional UV lamp and air filter system for decontamination and clean air conditions Integrated Eppendorf ThermoMixer (300 – 2,000 rpm; 4 –  95 °C) with 2DMix-Control Technology Integrated LEDs for deck illumination and visual feedback of system status like idle, run in progress or run finished Optional software extensions for handling barcodes and supporting regulated environments complaint to e.g. 21 CFR part 11
