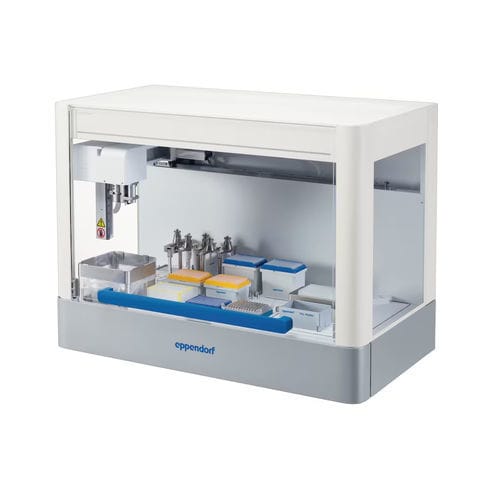

Automated pipetting system epMotion® 5075vt

for microplates

MultiCon PC, completely contained housing, vacuum system with accessories, gripper, ThermoMixer, epBlue software, keyboard, mouse, system for solid and liquid waste 100 – 240 V/50 – 60 Hz, 0.2 µL – 1 mL, (depending on dispensing tools) Technical Data Speed - 300 – 2,000 rpm Time range setting - 30 s – 120 min Max. load - 1,000 g / 2.2 lb Temperature range - 15 °C below RT to 95 °C Heating rate - 5 °C/min Cooling rate above RT - 3 °C/min Cooling rate below RT - 1 °C/min Thermal module Max. number of modules - 2 Time range setting - 1 – 120 min Temperature range - 0 °C – 110 °C Heating rate - 9 °C/min Cooling rate - 4 °C/min Vacuum unit Vacuum max. output - 35 NL/min Suction range - 0.1 – 85 kPa Suction time - 1 sec to 36 min Volume range - 0.2 µL – 1 mL Operating mode - automation Autoclavable - yes (tools) Power supply - 100 – 240 V, 50 – 60 Hz Consumables - epT.I.P.S. motion tips as racks or reload Max. power consumption - 700 W Dimensions (W × D × H) - 108 × 62 × 81 cm / 43 × 25 × 32 in Product weight - 128 kg / 282 lb SLAS/ANSI positions - 12 Features 12 SLAS/ANSI deck positions and automatic tool exchange for 4 tools and gripper Volume range from 0.2 to 1,000 µL (depending on dispensing tools used) Compatible with tubes from 0.2 mL to 50 mL and micro and PCR plates up to 384 wells Optical sensor for detecting liquids, labware, tips MultiCon PC controller with intuitive drag-and-drop-based software, simulation, network and software upgrade options Optional UV lamp and air filter system for decontamination and clean air conditions Integrated vacuum pump − silent operation, no tubing, wiring or reservoirs to maintain
