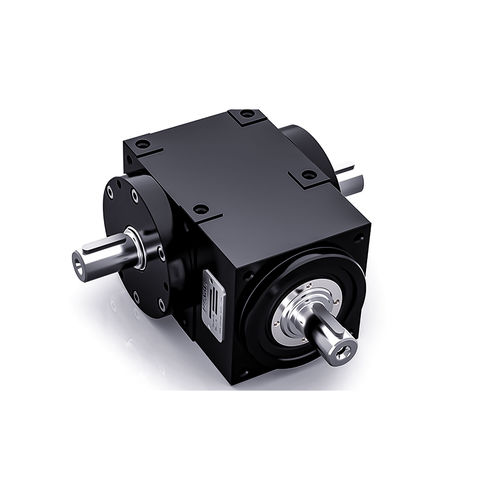

Bevel servo-gearbox BT serieshollow-shaft200 - 500 Nm50 - 100 Nm
Add to favorites
Compare this product
Characteristics
- Type
- bevel
- Shaft configuration
- hollow-shaft
- Torque
- 200 - 500 Nm, 50 - 100 Nm, 100 - 200 Nm, 20 - 50 Nm, 1 - 2 kNm, 2 - 5 kNm
- Applications
- shaft
- Rotational speed
Max.: 7,500 rpm
(47,123.8898 rad.min-1)Min.: 1,700 rpm
(10,681.415 rad.min-1)- Power
Max.: 55 kW
(74.78 hp)Min.: 2 kW
(2.72 hp)- Backlash
Max.: 0.26 °
Min.: 0.08 °
- Gear ratio
Max.: 5 unit
Min.: 1 unit
Description
- single or double-extended output shaft with feather key
- hollow shaft with keyway
Input:
- input shaft with feather key
Catalogs
No catalogs are available for this product.
See all of Eppinger‘s catalogsOther Eppinger products
Angular gear units
