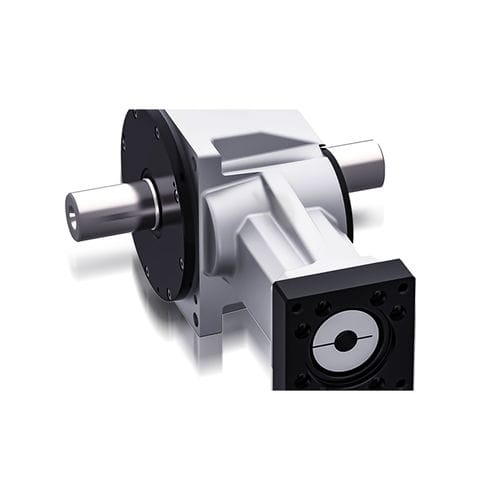

Hypoid servo-gearbox SHT serieshollow-shaft200 - 500 Nm50 - 100 Nm
Add to favorites
Compare this product
Characteristics
- Type
- hypoid
- Shaft configuration
- hollow-shaft
- Torque
- 200 - 500 Nm, 50 - 100 Nm, 100 - 200 Nm
- Rotational speed
3,400 rpm, 3,600 rpm, 4,000 rpm, 8,000 rpm
(21,362.83 rad.min-1, 22,619.47 rad.min-1, 25,132.74 rad.min-1, 50,265.48 rad.min-1)- Backlash
Max.: 0.1 rad
Min.: 0.02 rad
- Gear ratio
Max.: 90 unit
Min.: 20 unit
Description
- smooth single or double-extended output shaft
- hollow shaft with shrink disc
Input:
- Servo motor adapter
