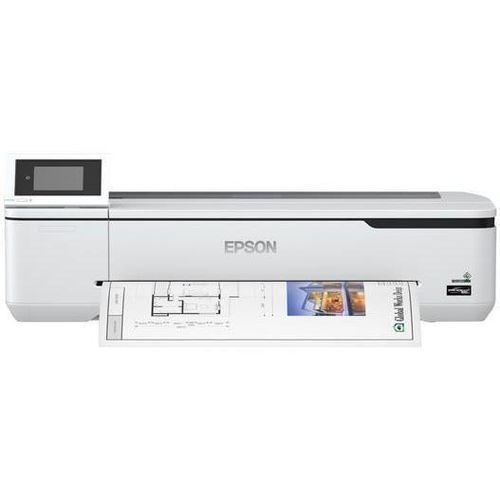

Inkjet plan plotter SureColor SC-T2100

4-colorroll-to-rollhybrid

Overview
The SureColor SC-T2100 is an entry-level large-format technical printer for precise CAD and technical drawings up to 24 inches. It targets cost-conscious professionals—freelance architects, engineers, students and small agencies—who need accurate, water-resistant, smudge-free prints with low total cost of ownership.

Key features

• Low cost – entry-level desktop large-format printer with low total cost of ownership
• Small footprint – compact design suited to offices and studios
• Water resistant and smudge-free – UltraChrome XD2 pigment inks
• Connectivity – wireless and mobile printing, USB 3.0 and Gigabit Ethernet
• Reduced downtime – Nozzle Verification Technology (NVT) and dust‑proof design
• Ease of use – 4.3-inch colour LCD touch panel; print from PC, smartphone or tablet
• Seamless media handling – auto-switch between 24" rolls and up to A3 sheet-fed media

What's in the box?

• AC cable
• Ink set
• Maintenance box
• Setup guide
• Spindle unit(s)
• SureColor T-Series printer
• Warranty documents

Additional product information

• Designed for technical, architectural drawings, posters and office documents requiring precision
• Nozzle Verification Technology (NVT) helps prevent misprints and reduces downtime
• Supports PC, Mac and mobile printing; Wi‑Fi Direct and Apple AirPrint supported

Technical specifications

• Printing method: PrecisionCore™ print head
• Ink technology: Pigment ink, UltraChrome® XD2
• Number of colours: 4 (Matte Black, Cyan, Magenta, Yellow)
• Ink capacities: Black [50 ml, 80 ml], Cyan/Yellow/Magenta [26 ml, 50 ml]
• Minimum droplet size: 4 pl
• Minimum line width: 0.07 mm
• Line accuracy: ±0.26
• Nozzle configuration: 800 nozzles Black; 800 nozzles per colour
• Printing resolution: 2,400 x 1,200 dpi
• Print from: PC, Mac, Mobile Device, Direct USB, Wi‑Fi Direct
• Paper formats supported: 24", 17", A1, A2, A3, A4, B1, B2, B3, B4
• Print margins (sheet/roll): Mode 1: 3 mm (top/right/bottom/left)
• Thickness (single sheet / roll): up to 0.3 mm
• Compatible paper thickness: 0.05 mm – 0.27 mm
• Automatic document feed: Standard (built-in)
• Printable roll length: minimum 18 m
• Roll capacity (diameter): 119 mm; roll weight example: 4,200 g
• Memory: Printer: 1 GB
• Scanner: optional (supported models: Epson WorkForce DS-6500, DS-60000)
• Output/print formats: TIFF, JPEG; emulations: ESC/P-R, HP-GL2, RTL
• Interfaces: USB 3.0, Ethernet 1000Base-T, Wireless LAN IEEE 802.11b/g/n, Wi‑Fi Direct
• Mobile and cloud printing services: Apple AirPrint, Epson Cloud Solution PORT
• Power consumption: 28 W (operation), 8 W (standby)
• Supply voltage: AC 100 V – 240 V, 50/60 Hz
• Product dimensions (W x D x H): 970 x 505 x 230 mm
• Product weight: 27 kg
• Noise level: Operation (Roll): 49 dB(A); Standby: 32 dB(A); Sound power operation: 7.5 B (A)
• Optional extras: printer stand with stacking print basket, CoverPlus warranty extensions, 24" roll feed spindle, stacker
• Features: 4.3-inch colour LCD touchscreen
• Compatible OS: Mac OS X 10.6.8 or later, Windows 7/8/10
• Security: TLS, SSL, SNMP, IPSec, IPv6
• Product safety warnings: contains certain chemicals (see product label); follow label information
• Warranty: 12 months on-site service
