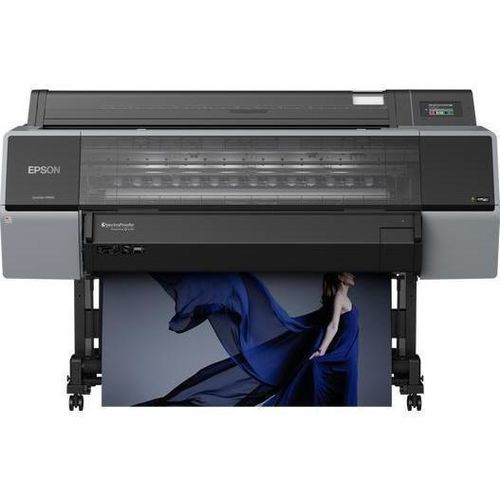

Inkjet large format printer SC-P9500 Spectro

colormulti-colorroll-to-roll

Overview
The SureColor SC-P9500 Spectro is a 44-inch large-format printer designed for photographers, artists and proofing houses. It integrates Epson’s UltraChrome Pro12 inkset with K3 technology and a μTFP12 PrecisionCore printhead to deliver an extended colour gamut and precise droplet placement for professional proofing and production workflows.

Key benefits

• Quality output (up to 44-inch) – 12-colour UltraChrome Pro12 inkset with K3 and dual black inks for wide gamut and accurate skin and photographic tones.
• High productivity – Configured for elevated production throughput suitable for short-run and medium-run volumes.
• Reliability – Nozzle Verification Technology (NVT), dust-prevention measures and internal ink buffer reduce printing interruptions.
• Ease of use – 4.3-inch colour touchscreen with intuitive interface and illuminated paper path for quick job monitoring.
• Colour control – Optional SpectroProofer (photospectrometer) enables inline colour measurement and automated proofing workflows.
• Security & support – Compliant with applicable product security requirements; manufacturer provides software/security updates per region policy.

Operation and maintenance

• Accurate imaging – μTFP12 printhead with up to 800 nozzles per colour and variable-sized droplet technology (min. 3.5 pl) for fine gradations and texture reproduction.
• Automated colour measurement – Optional SpectroProofer supports faster, repeatable colour measurement and inline proof control.
• Maintenance features – NVT, dust prevention, internal ink buffer and sub-tanks minimize manual intervention; supports manual head/cap cleaning and pad replacement for on-site maintenance.
• Media handling – Supports roll and sheet media up to 44" and paper thickness from 0.08 mm to 1.5 mm; borderless printing on multiple widths.

What's in the box?

• Cover for tip of setting plate
• Instructions
• Safety wire set
• Screw set
• Template sheet
• Wall plate cover

Specifications

• Print technology – PrecisionCore™ Micro TFP printhead (μTFP12).
• Ink technology – UltraChrome® Pro12 (12 colours including Orange, Green, Violet; dual blacks).
• Colours – Photo Black, Matte Black, Cyan, Light Cyan, Yellow, Vivid Magenta, Vivid Light Magenta, Violet, Orange, Green, Grey, Light Grey.
• Minimum droplet size – 3.5 pl (Variable-Sized Droplet Technology).
• Ink tank capacity – 700 ml per tank.
• Nozzle configuration – 800 nozzles black; 800 nozzles per colour.
• Printing resolution – Up to 1,200 x 2,400 DPI.
• Media formats – Supports A0, A1, A2, A2+, A2++, A3+, A3++, A3, A4, B1, B2, B3, B4 and roll widths up to 44".
• Media thickness – 0.08 mm – 1.5 mm.
• Power – 110 W (operation), 32 W (economy), 3.4 W (standby), 0.3 W (off).
• Supply voltage – AC 100 V - 240 V, 50/60 Hz.
• Dimensions (W x D x H) – 1,909 x 667 x 1,218 mm.
• Weight – 172.4 kg.
• Noise – Operation (roll): 49.5 dB(A); Sound power: 7.5 B(A).
• Memory – Printer: 2 GB.
• Interfaces – Ethernet (1000Base-T/100Base-TX/10Base-T), Hi-Speed USB (USB 2.0 compatible).
• Warranty – 12 months on-site service (region-specific terms may apply).
