Matrix printer LX-350

desktopmonochromecompact

Overview

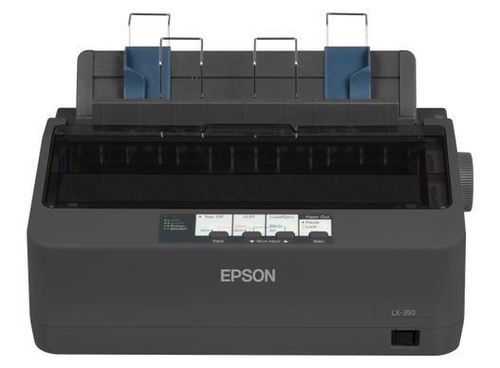

The Epson LX-350 is a reliable 9‑pin impact dot matrix printer designed for front- and back-office environments that require continuous paper or multi-part stationery. It offers a MTBF of 10,000 hours, low running costs thanks to a high ribbon yield and low power consumption, and is ENERGY STAR qualified. Standard interfaces include bidirectional parallel, RS-232 and USB 2.0. Compact footprint with integrated cable management for desktop use.

Key features

• 9‑pin impact dot matrix, 80 columns
• High reliability: MTBF 10,000 hours
• Economical operation: ribbon yield up to 4,000,000 characters (Black Draft)
• Low power consumption: 27 W operating, 1.1 W standby
• Interfaces: Bidirectional parallel, USB 2.0, RS-232
• Supports up to 4 carbon copies + original
• Emulations: ESC/P, IBM PPDS
• Print head life: 400 million strokes per wire; Memory: 128 kB; Noise: 53 dB(A)
• Warranty: 24 months carry-in

What's in the box?

• Driver and utilities
• Main unit
• Power cable
• Ribbon
• Setup guide
• Software (CD)
• User manual (CD)
• Warranty document

Paper handling

• Document feed: Single-sheet rear, Continuous media rear, Paper output rear
• Supported formats: Single- and multi-layer sheet paper, Continuous paper (single- and multi-layer), Labels (single- and multi-layer), Roll paper, Envelopes
• Paper thickness (continuous paper): 280 mm - 370 mm

Technical specifications

• Printing method: Impact dot matrix
• Number of pins: 9
• Number of columns: 80
• Printing speed: HighSpeed-Draft — 10 cpi: 347 chars/s, 12 cpi: 357 chars/s, 15 cpi: 390 chars/s; Draft — 10 cpi: 260 chars/s, 12 cpi: 312 chars/s; NLQ — 10 cpi: 65 chars/s, 12 cpi: 78 chars/s
• Carbon copies: 4 plus one original
• Printing resolution: 240 x 144 DPI
• Interfaces: Bidirectional parallel, USB 2.0, RS-232
• Power consumption: 27 W (operating), 1.1 W (standby)
• Dimensions (W x D x H): 348 x 275 x 154 mm
• Weight: 4.1 kg
• Operating temperature: 5 °C - 35 °C; Storage: 5 °C - 35 °C
• Operating humidity: 10% - 80%; Storage humidity: 10% - 80%
• Compatible OS: Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8
• Included software: Epson Status Monitor
• Mean time between failures (MTBF): 10,000 hours
• Print head life: 400 million strokes/wire
• Ribbon yield: 4,000,000 characters (Black Draft)
• Noise level (operation): 53 dB(A)
• Memory: 128 kB
