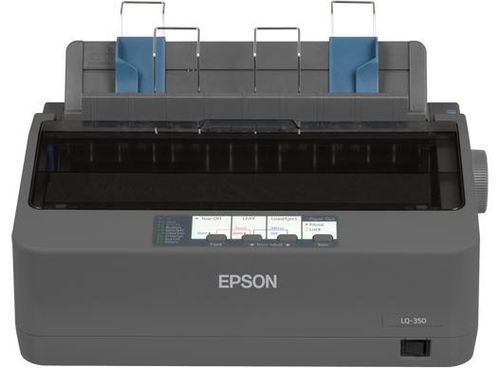

Impact printer LQ-350

matrixdesktopmonochrome

Overview
The Epson LQ-350 is a 24-pin impact dot matrix printer designed for continuous paper and multi-part stationery in front- and back-office environments. It offers a Mean Time Between Failures (MTBF) of 10,000 hours, high ribbon yield and low power consumption, and supports Parallel, Serial and USB connectivity. Its compact footprint and cable management enable tidy desk installation.

Key features

• Reliability MTBF 10,000 hours
• Power consumption 1.3 W standby, 22 W operating
• Ribbon yield up to 2,500,000 characters (LQ); 3,000,000 characters in Draft
• Connectivity USB 2.0, RS-232, bidirectional parallel
• Media support single sheet, continuous forms, labels, roll paper, envelopes

What is in the box?

• Driver and utilities
• Main unit
• Ribbon
• Setup guide
• Software CD
• User manual CD
• Warranty document

Product details
The LQ-350 supports 80 columns, print resolution 360 x 180 dpi, and carbon copies up to 3 plus one original. Print speeds: HighSpeed-Draft 10 cpi 347 chars/s; Draft 10 cpi 260 chars/s; LQ 10 cpi 86 chars/s. Print head life 400 million strokes per wire. Noise level 53 dB(A). Memory 128 kB. Dimensions 348 x 275 x 154 mm. Weight 4.1 kg.

Technical specifications

• Printing method: Impact dot matrix
• Pins: 24
• Columns: 80
• Resolution: 360 x 180 dpi
• Interfaces: USB 2.0, RS-232, bidirectional parallel
• Paper feed: rear single sheet, rear continuous, rear paper output
• Paper formats: single- and multi-layer sheets, continuous paper, labels, roll paper, envelopes
• Power consumption: 22 W operating; 1.3 W standby
• Supply voltage: AC 200-240 V
• Operating temperature: 5°C - 35°C
• Operating humidity: 10% - 80%
• Compatible OS: Windows 2000, XP, Vista, 7, 8
• Ribbon yield: Draft 3,000,000 chars; LQ 2,500,000 chars
• Emulations: ESC/P2, IBM PPDS
• Mean Time Between Failures (MTBF): 10,000 hours
• Print head life: 400 million strokes per wire
• Noise: 53 dB(A)
• Memory: 128 kB included
• Warranty: 24 months carry-in
