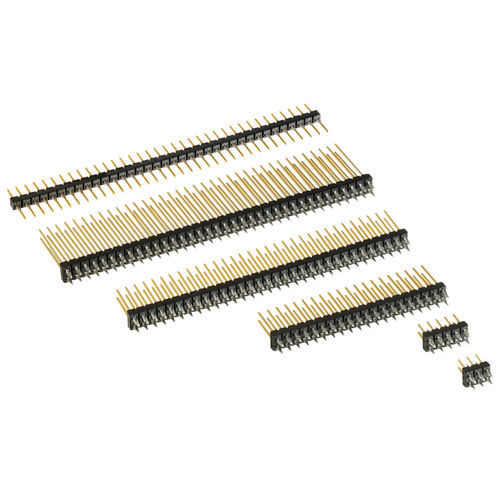

Single-row pin header 971-nn006-b1

straight2.54 mm (0.100")

• length mating face (Y) = 16.6 mm • Press-fit • termination length 3.4 mm • 2 - 36 contacts (nn in part number = pins / row) • 1-row • b in part number defines Performance Level of mating side No. of Contacts - 2 - 36 Termination Technology - Press-fit Termination Length - 3.4 mm Board-to-Board Distance - 23.05 mm - 27.05 mm Material Insulator Material - PBT glass filled, UL 94 V-0 Contact Material - Copper alloy Mechanical Pitch - 2.54 mm Mating Force per Pin - max. 0.9 N Separating Force per Pin - min 0.6 N Electrical Operational Current - max. 1.9 A Operational Voltage - 150 V Contact Resistance - 106 MΩ Approval / Compliance UL file - E130314 Environment - RoHS compliant
