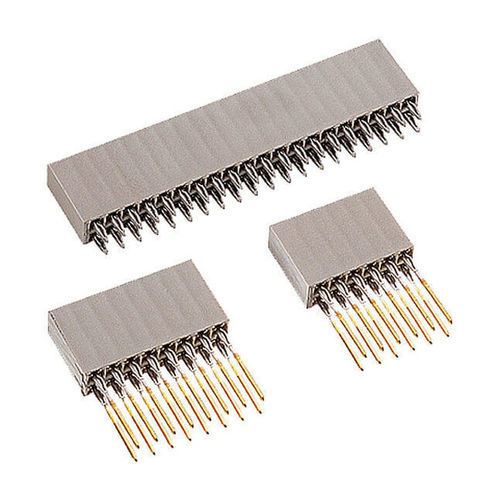

Data connector Pins HeaderfemalePBT
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- Pins Header
- Connection type
- female
- Material
- PBT, copper
- Primary current
Min.: 0 A
Max.: 1.9 A
- Voltage
150 V
- Pitch
2.54 mm
(0.1 in)- Operating temperature
Min.: -55 °C
(-67 °F)Max.: 125 °C
(257 °F)
Description
Performance Level 3
solder
termination length 3.4 mm
2 - 36 contacts (nn in part number = pins / row)
Mating Force per Pin - max. 0.9 N
Separating Force per Pin - min 0.6 N
Contact Resistance - 106 MΩ
