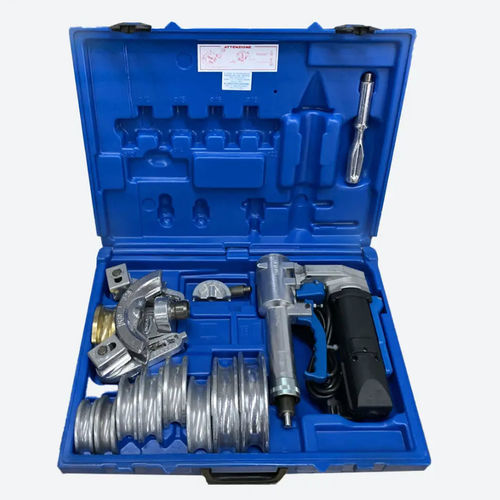

Handheld bending machine 0102 Jolly

hydraulicelectrictube

Product overview
0102 Jolly electric tube bender, hydraulic line, supplied with basic kit and 11 bend dies.

Features

• Rotary head
• Quick coupling
• Electrically operated hydraulic pump
• Double-insulated single-phase motor, 200/220 V, 50/60 Hz, 400 W

Max bend capacity (materials / dimensions)
Annealed copper — Ø 22 x 1.5 mm
Annealed aluminum — Ø 22 x 1.5 mm
Annealed brass — Ø 22 x 1.5 mm
Annealed steel — Ø 22 x 1.5 mm
Stainless steel — Ø 18 x 1.5 mm
Chibro and Mannesmann — Ø 18 x 1.5 mm
Mepla – Geberit and similar — Ø 40 x 4 mm
Gas Tube — Ø 1/2" x 2.5 mm

Standard accessories

• Atari briefcase
• Electric pump body (200/220V)
• Electric pump body (100/110V)
• Piston extension
• Jolly Universal Fork
• Die extractor
• 11 arrays (11 bend dies)

Others available models
MODELS — DESCRIPTION
0102/1 — Double-insulated single-phase motor, 100/110 V, 50/60 Hz, 400 W.

Technical specifications

• Minimum external diameter: ⌀ 22 mm
• Maximum bend capacity: ⌀ 22 x 1.5 mm
• Motor: Double-insulated single-phase motor, 200/220 V, 50/60 Hz, 400 W (variant 0102/1: 100/110 V, 50/60 Hz, 400 W)
• Hydraulic line with electrically operated pump
• Rotary head
• Quick coupling
• Supplied complete with basic kit and 11 bend dies
• Applicable materials and sizes: see Max bend capacity section above (copper, aluminum, brass, annealed steel, stainless steel, Chibro/Mannesmann, Mepla/Geberit, gas tube)
