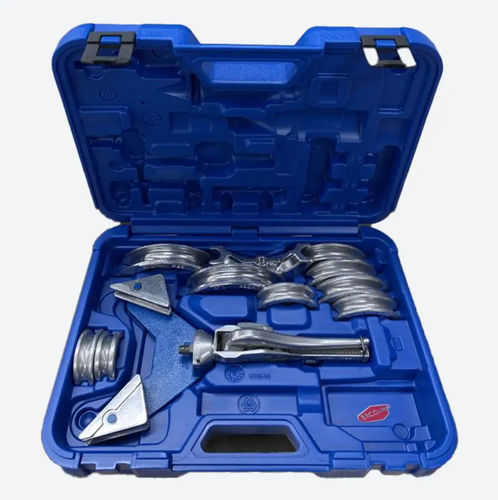

Electro-hydraulic bending machine Junior Mec

tube

Product overview

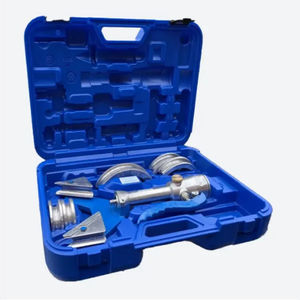

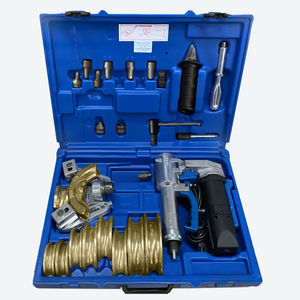

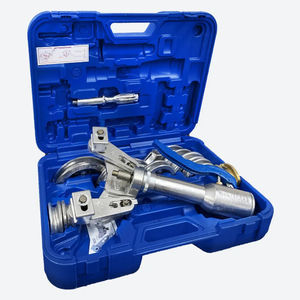

Junior Mec mechanical tube bender with rotary fork, supplied with basic kit and 11 bend dies.

Features

• Rotary head
• Quick coupling
• Electrically operated hydraulic pump
• Double-insulated single-phase motor, 200/220 V, 50/60 Hz, 400 W

Max bend capacity
Annealed copper: Ø 22–10 mm
Non-coated tubes: Ø 22–10 mm

Standard accessories

• Atari briefcase
• Electric pump body (200/220 V)
• Electric pump body (100/110 V)
• Piston extension
• Jolly universal fork
• Die extractor
• 11 bend dies

Other available models
Model JM26A1 — Junior Mec mechanical tube bender kit with rotary fork, basic kit and 11 bend dies.

Technical specifications

• Minimum external diameter: Ø 22 mm
• Maximum bend capacity: 10–22 mm
• Material examples: Annealed copper Ø 22–10 mm; Non-coated tubes Ø 22–10 mm
• Motor: Double-insulated single-phase motor, 200/220 V, 50/60 Hz, 400 W
• Drive: Electrically operated hydraulic pump
• Mechanical features: Rotary head, quick coupling
• Standard supply: Basic equipment with 11 bend dies
• Available kit model: JM26A1 (kit with rotary fork and 11 bend dies)
