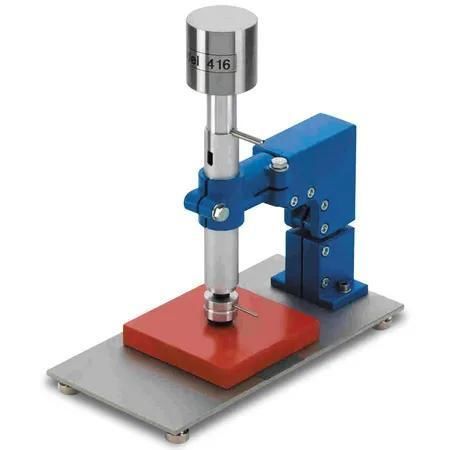

Compression resistance testing device Model 416

manualpaintfor coating

Application
This instrument is designed for testing the through-dry (surface-dry) state of paints, lacquers and similar coatings in accordance with ISO 9117 and EN 29117.

Principle of test
A test plunger covered with a monofil nylon fabric and loaded with a defined weight is lowered onto the test surface for a limited period and then turned through 90°. The effect on the coating is evaluated after lifting the plunger to determine surface dryness.

Design and function
The tester consists of a specimen table with a support stand guiding a loaded weight vertically. The test plunger is connected to the weight via a ball-and-socket joint (total test head weight 1500 g). A rubber sheet (hardness 50 IRHD according to ISO 48) is fixed to the front of the test head. A monofil nylon fabric (thread diameter 0.12 mm, 100 x 100 mm) is attached and retained by an O-ring; it must be replaced before each test. The instrument must be levelled horizontally before use using the supplied box level and adjustable feet.

Test procedure
After a defined drying time lower the test head onto the specimen. Press for 10 s, rotate the test head 90° and after a further 2 s lift the head. If no marks or damage are observed on the coating, the through-dry state is achieved; otherwise repeat the test after an appropriate interval (see standards).

Scope of delivery

• Through-Dry Tester, Model 416
• Box level
• 100 pcs of nylon fabrics (100 x 100 mm)

Standards

• ISO 9117
• DIN EN 29117

Technical characteristics / specifications

• Model designation: Model 416
• Order number: 01850131
• Drive: Manual
• Dimensions: Length approx. 150 mm • Width approx. 300 mm • Height approx. 305 mm
• Net weight: approx. 4.5 kg
• Test head total weight: 1500 g
• Rubber sheet hardness: 50 IRHD (according to ISO 48)
• Nylon fabric: monofil, thread diameter 0.12 mm, size 100 x 100 mm (single use)
• Test procedure timing: press 10 s, turn 90°, lift after further 2 s
