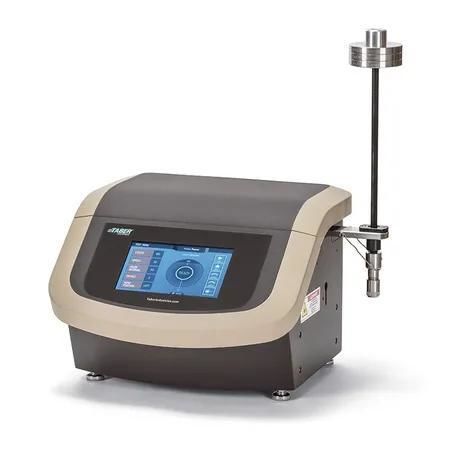

Scrub resistance abrasion tester TABER® LINEAR ABRASER 364 T

multifunctionfor coating

Technical description
The TABER® LINEAR ABRASER 364 T is an abrasion tester designed to measure abrasion and scratch resistance on flat, concave or convex surfaces. Its floating head follows sample contours, allowing tests on finished parts with minimal restrictions on sample size or shape. The instrument is suitable for plastics, automotive and other painted parts, printed graphics, optical products, rubber, leather, textiles and laboratory use.

Maintain consistent testing standards
The Linear Abraser uses a Wearaser™ — a compact abrasive element the size and shape of a pencil eraser that employs Taber abrasive media. This ensures repeatable, comparable results. Jumbo Wearasers™ and Weardisc options are available for wider test tracks; a universal test head supports custom abrasive media.

Versatile testing
Adjustable stroke length, speed and load, together with a wide selection of Wearasers™, allow configuration to specific test protocols. Optional specimen table improves handling of small or irregular samples. Additional attachments enable scratch, coin-scrape, Crockmeter, rub and other custom tests.

Standard Features

• Stroke lengths: 0.5" / 1.0" / 2.0" / 3.0" / 4.0"
• Variable stroke speed: 2–75 cycles per minute
• Preset stroke speed buttons: 2, 15, 25, 30, 40, 60 cycles/min
• Variable load: 350–2100 grams (with optional weight discs)
• Stainless Steel Wearaser™ collet for vitrified or resilient Wearasers
• Laser alignment guide
• Interface port for remote Start/Stop
• CE
• 115 V / 230 V switchable

Scope of delivery

• Abrasion Test Instrument TABER® LINEAR ABRASER 364 (Type 5770)
• Wearaser™ Head and Spline Shaft
• 3 auxiliary weights, 250 g each
• Wearaser™ CS-10 (pkg. of 10)
• Wearaser™ H-18 (pkg. of 5)
• S-14 refacing strips (pkg. of 50)
• Power cords (115 & 230 V)
• Hex L-key tool
• Wearaser™ depth gauge tool
• Hand brush S-12
• Operating instructions

Technical specifications

• Drive: Electric
• Variable load: 350–2100 grams (with optional weight discs)
• Stroke lengths: 0.5" / 1.0" / 2.0" / 3.0" / 4.0"
• Stroke speed: 2–75 cycles per minute
• Preset speeds: 2, 15, 25, 30, 40, 60 cycles/min
• Wearaser™ collet: Stainless steel, for vitrified or resilient Wearasers
• Interface port: Remote Start/Stop
• Voltage: 115 V / 230 V switchable
