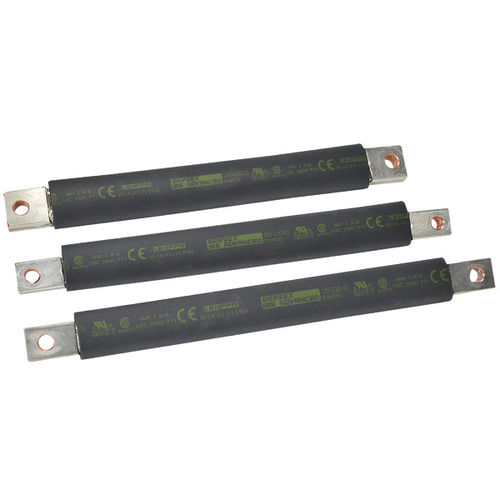

Power cable IBSADV series
flame-retardantinsulatedUV-resistant

power cable
power cable
power cable
Add to favorites
Compare this product


Characteristics

Type
power
Protection
flame-retardant, insulated, UV-resistant, low-smoke
Configuration
round
Core material
copper
Norms
IEC
Other characteristics
halogen-free, flexible, UL, ISO, high-resistance
Nominal voltage

600 V, 1,000 V, 1,500 V

Temperature

Min.: -50 °C (-58 °F)

Max.: 115 °C (239 °F)

Cross-section

120 mm², 185 mm², 240 mm² (0.19 in²)

Description

IBS Advanced Round Insulated Braided Conductor, Halogen Free are the ideal ready-to-install flexible wire replacement solution. Round IBS Advanced connect to the terminals of an electrical device without the need for additional accessories, such as angular connectors, spreaders, ring terminal connectors or extenders. Round IBS Advanced are available in cross sections of 120, 185 and 240 mm² (236.82, 365.10, and 473.65 kcmil), lengths from 330 to 1,030 mm (9.06" to 40.55"), and amperages ranging from 420 to 630 A. Manufactured in an ISO 9001 certified automated facility, round IBS Advanced is formed by weaving high-quality electrolytic copper wire to form a durable low voltage connector with maximum flexibility that allows for more compact power connections to electrical devices. The round IBS Advanced allows users to reduce the total size and weight of the installation, improving both design flexibility and assembly aesthetics. The round IBS Advanced features pre-punched palms that are ready to connect out of the box. There are no lugs to purchase or install, making connections simpler and faster and eliminating faulty connections due to vibration or fatigue. The advanced technology insulation is a high-resistance low smoke, halogen-free and flame retardant thermoplastic. Round IBS Advanced does not generate corrosive gases and produces a relatively low smoke opacity in accordance with IEC 61034-2 and UL 2885. The low smoke characteristic improves the visibility conditions for people to be able to easily locate the emergency exit and also allows rescue workers to better assess an emergency situation.

VIDEO

Catalogs

No catalogs are available for this product.

See all of ERICO‘s catalogs
