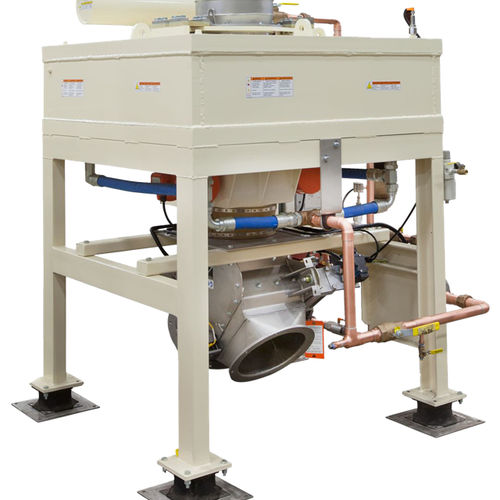

Magnetic separator

vibratingmetaldry

Eriez unique Vibrating Magnetic Filter incorporates vibrating filter elements to provide a high capacity material flow. As the material flows through the magnetized elements, the iron bearing contaminants are captured, resulting in a high‑purity product. Ferrous contaminants are typically reduced to the ppm level when treating materials such as alumina, talc, and silica and zircon flours. The exceptionally high intensity field generated by the electromagnet provides peak separation efficiency. Developed for the pharmaceutical, cosmetic, abrasives, specialty glass, specialty metallic powder and industrial minerals market. Features: High intensity, high gradient magnetic field High frequency, low amplitude vibration Two magnetic field strengths available Four sizes available, including a laboratory model The electromagnet consists of a solenoid coil encased in a steel housing. A high intensity uniform magnetic field is generated in the bore of the coil. Within the bore is a canister, packed with filter elements, which are referred to as the matrix. The matrix consists of a stack of expanded steel plates arranged with staggered openings to accommodate the material flow. The matrix amplifies the externally applied magnetic field, produces regions of extremely high gradient and provides collection sites for the capture of ferrous contaminants. A dual vibratory drive system, mounted on the canister, imparts a high frequency, low amplitude vibration to the matrix.
