Particle separator Model FA

magnetic drumpermanent magnet

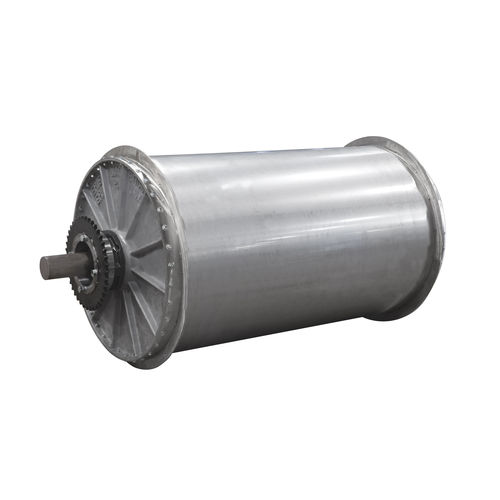

Eriez’ Drum Separators remove both large and small pieces of iron contaminants from material processing lines. Powerful permanent magnets enable more efficient separation performance for a broader range of applications than ever before. The complete line includes standard models in diameters from 305 to 915 mm (12 to 36 in), and widths from 305 to 1525 mm (12 to 60 in ). These units provide efficient separation on volumes up to 725 cubic metres (25,600 cubic feet) per hour. They provide years of trouble-free automatic removal of tramp iron from heavy flows of bulk materials, including large and highly abrasive materials. Features: Ferrite or Rare Earth options are available Easy to retrofit into existing plant Multiple magnet element designs are available Wide range of sizes available: 300 mm - 1200 mm diameters and 300 mm - 4000 mm widths Full housing assemblies with integrated feed hopper/gate or vibratory feeder available Options for replaceable shells to minimize wear Benefits: High volume throughputs Enhanced separation performance compared to magnetic pulleys Low maintenance Different magnet configurations are available Automatic self-cleaning mechanism
