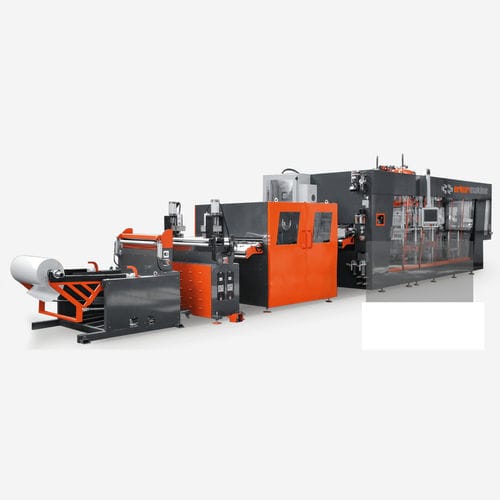

Roll-fed thermoforming machine ER 90-4

for packagingautomaticvacuum

FUNCTION - - Form-Punch-Cut-Stack Max. Mould Size - - 920 x 720 mm Forming Mould Height - Upper - 150 – 240 mm (with adaptor) 360 – 450 mm (without adaptor) - Lower - 150 – 240 mm Cutting Mould Height - Upper - 40 – 190 mm - Lower - 190 mm fix Punching Mould Height - Upper - 175 – 325 mm - Lower - 260 mm fix Sheet Thickness - - 0,1-2 mm Max. Sheet Unwinder Reel - - 1300 mm Max. Maximum Sheet Roll Weight - - 1500 kg Max. Product Height - - Positive 150 mm / Negative 150 mm Max. Dry Cycles - - 75 cycles/min. Running Power - - 100-130 kW Total Installed Power - - 230-240 KVa/315-325 KVa – Foam Vacuum - - 200 m3/min. Required Compressor - - 5 m3/min. Required Chiller - - 40.000 Kcal/h. Operation Pressure - - 6-8 bar Forming Closing Force - - 90.000 daN Cutting Closing Force - - 90.000 daN Punching Closing Force - - 90.000 daN Pitch Accuracy - - 0,15 mm Lubrication System - - Automatic machine and chain lubrication Maximum Stacking Height (Sweeper) - - 500 mm Maximum Stacking Height (Robot) - - 500 mm Approximate Machine Weight (ton) - - 3 station – 21 t. / 4 station – 28 t.
