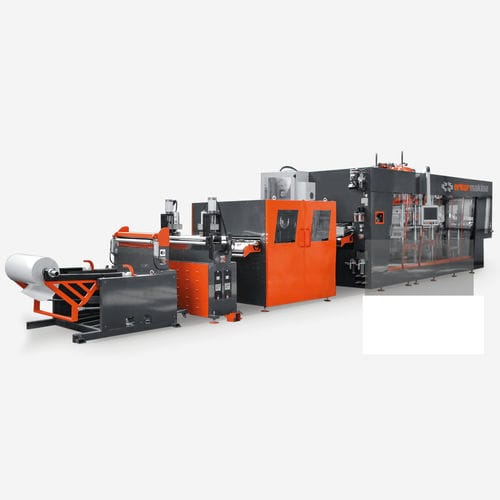

Roll-fed thermoforming machine ER 80-3

for packagingautomaticvacuum

FUNCTION - - Form-Cut-Stack Max. Mould Size - - 800 x 580 mm Forming Mould Height - Upper - 150 – 330 mm - Lower - 150 – 250 mm Cutting Mould Height - Upper - 50 – 150 mm - Lower - 150 mm fix Punching Mould Height - Upper - – - Lower - – Sheet Thickness - - 0,1-2 mm Max. Sheet Unwinder Reel - - 1200 mm Max. Maximum Sheet Roll Weight - - 1500 kg Max. Product Height - - Positive 130 mm / Negative 130 mm Max. Dry Cycles - - 75 cycles/min. Running Power - - 30-50 kW Total Installed Power - - 190-200 KVa/305-315 KVa – Foam Vacuum - - 200 m3/min. Required Compressor - - 5 m3/min. Required Chiller - - 40.000 Kcal/h. Operation Pressure - - 6-8 bar Forming Closing Force - - 80.000 daN Cutting Closing Force - - 80.000 daN Punching Closing Force - - 80.000 daN Pitch Accuracy - - 0,15 mm Lubrication System - - Automatic machine and chain lubrication Maximum Stacking Height (Sweeper) - - 400 mm Maximum Stacking Height (Robot) - - 500 mm Approximate Machine Weight (ton) - - 3 station – 18 t. / 4 station – 23 t.
