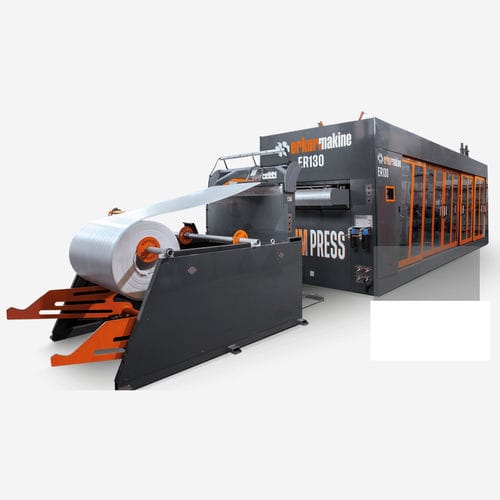

Roll-fed thermoforming machine ER 130

sheetPSfor packaging

FUNCTION - - Form-Cut-Stack Forming Mould Size - - 1300 x 1200 mm Cut&Stack Mould Size - - 1500 x 600 mm Mould High Forming - Upper - 180-280 mm - Lower - 200-300 mm Mould High Cutting&Stacking - Upper - 120-220 mm - Lower - 80 mm Sheet Thickness - - 0,1 – 2 mm for Plastics / 1,0 – 5 mm for PS Foam Maximum Sheet Roll Weight - - 1500 kg Maximum Bobbin Diameter - - 1600 mm Max. Product Height - - Positive 130 mm / Negative 130 mm Max. Dry Cycles - - 45 cycles/min. Total Installed Power - - 230-240 KVa/315-325 KVa – Foam Heater Length - - 3940 mm Heating power - Upper - 75 kW - Lower - 73 kW Vacuum - - 200 m3/min. Required Compressor - - 4-5 m3/min. Required Chiller - - 40.000 Kcal/h. Operation Pressure - - 6-8 bar Forming Closing Force - - 75.000 daN Cutting Closing Force - - 120.000 daN Lubrication System - - Automatic machine and chain lubrication Approximate Machine Weight (ton) - - 15 t.
