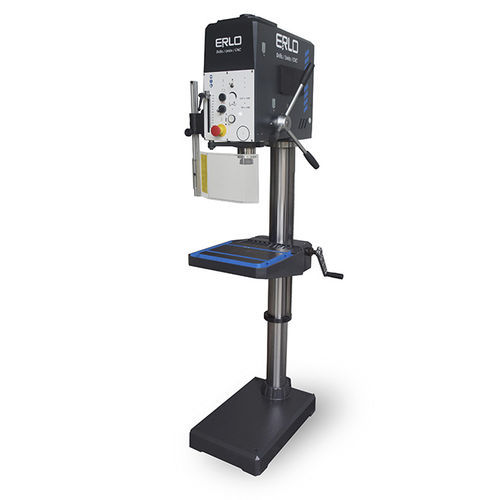

Column type drilling and tapping machine V-32
variable-speedelectric

column type drilling and tapping machine
column type drilling and tapping machine
Add to favorites
Compare this product

Go to the ERLOGROUP website for more information

Characteristics

Other characteristics
column type, electric, variable-speed
Drilling diameter

32 mm
(1.26 in)

Rotational speed

Min.: 245 rpm
(1,539.4 rad.min-1)

Max.: 4,000 rpm
(25,132.7 rad.min-1)

Description

Feed manual Transmission belts Column diameter: 100 mm Distance from spindle to column: 250 mm Moveable table and fixed bit Drilling capacity: ⌀ 32 mm Tapping capacity: M 24 Spindle cone: CM 3 Engine power: 1,8 | 3,2 HP Num. and selections of speeds: (10) 245-4000 rpm Drilling depth: 120 mm Weight: 260 kg Measurements: 655x400x1900 mm

Catalogs

Serie V-VP
Serie V-VP
2 Pages
Go to the ERLOGROUP website for more information
