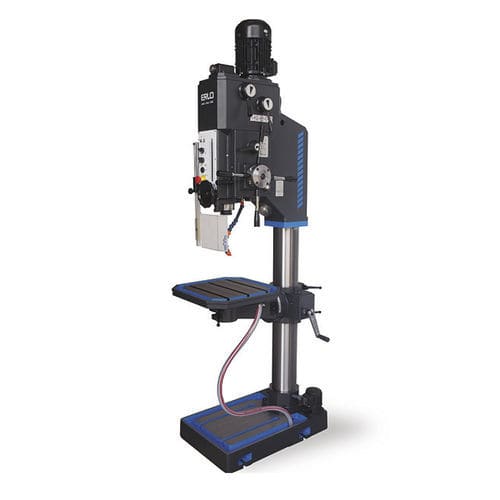

Drill press GP-50electricvariable-speed
Add to favorites
Compare this product
Characteristics
- Type
- column type
- Power source
- electric
- Other characteristics
- variable-speed
- Rotational speed
Max.: 1,420 rpm
(8,922.1 rad.min-1)Min.: 93 rpm
(584.3 rad.min-1)- Drilling diameter
50 mm
(1.97 in)
Description
Feed mechanical automatic
Feed: 0,10-0,18-0,24
Transmission gears
Column diameter: 150 mm
Distance from spindle to column: 350 mm
Moveable table and fixed bit
Tiltable rotating table
Front wheel for sensitive fine feed
Drilling capacity: ⌀ 50 mm
Tapping capacity: M 35
Spindle cone: CM 4
Engine power: 4 HP
Num. and selections of speeds: (8) 93 - 1420 rpm
Drilling depth: 180 mm
Weight: 435 kg
Measurements: 755x480x2265 mm
Catalogs
Serie GP.40-50
2 Pages
