Pre-alignment module Pre-alignment modules

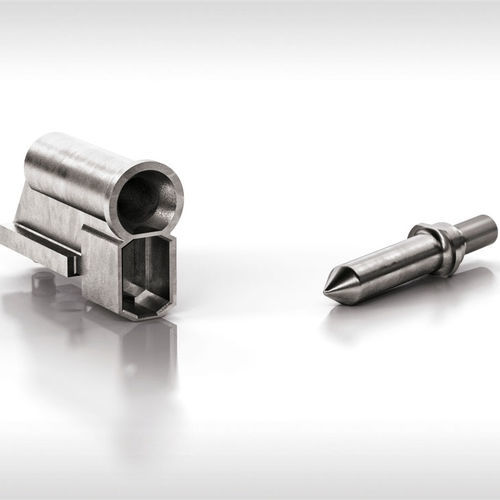

or secure plugging in numerous applications ERNI Pre-alignment modules are designed for secure plugging of ERmet 2.0 mm HM and ERmet ZD plug-in boards. They enable an exact plugging of many electrical contacts without damage. At the same time they meet the requirements with as much clearance as possible between the guide rails of an assembly carrier and the plug-in boards. Stresses on the PCBs can be avoided. Additional functions such as electrical contacts and coding options expand the area of use. - matched to ERmet 2.0 and ZD - secure plugging - prevents damage - no PCB stresses - prevents incorrect plugging - enables quick assembly - coding options - electrical contact possible - current rating up to 40 A Application possibilities of the pre-alignment modules from ERNI If plug-in boards are to be plugged in with the ERmet 2.0 mm HM or ZD connectors securely and without damage in central assemblies, ERNI pre-alignment modules provide the right solutions. Thanks to additional functions such as electrical contact and coding options, contacts and coding can be spared in the actual connectors. The modules ensure more than two millimeters for the catch area. ERNI Pre-alignment modules are suitable for different PCB thicknesses of the backplanes and daughter boards.
