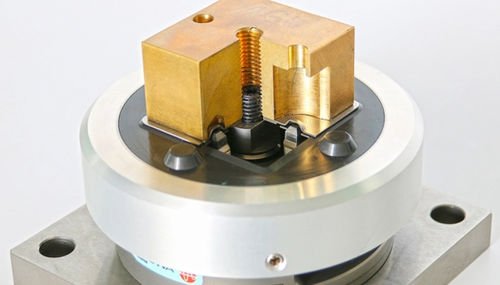

Electrical discharge electrode holder ITS 50 C

Completely sealed The demand for a high degree of reliability and quality in automated production makes great demands on the equipment. The use of the new EROWA ITS 50 electrode holder C provides maximum protection against the contamination of EROWA chucks during production. Whether there are copper chips, graphite dust or fine HSC chips – the functionality of the chucks will be guaranteed. Universally usable EROWA ITS 50 holders C can be universally used for most machining technologies. Patented safety The sealing plate of the EROWA ITS 50 holder C and the sealing ring constitute a positive-locking seal. This provides the chuck with maximum protection against contamination. Sealed Seals are available to fit all EROWA chucks. The sealing ring is put over the chuck on the machine table. Retrofit existing holders Existing ITS 50 holders of the first generation can simply be retrofitted and put to continued use. Fit the sealing plate (with new or existing centering plates and supports) to the existing holder. Automating The new ITS 50 holders C are prepared for automated handling with an EROWA robot. They have a gripper slot at the circumference. Suitable gripper The holders can be moved by a robot with a model ITS 50 C gripper. This particular gripper fits all current EROWA robots.
