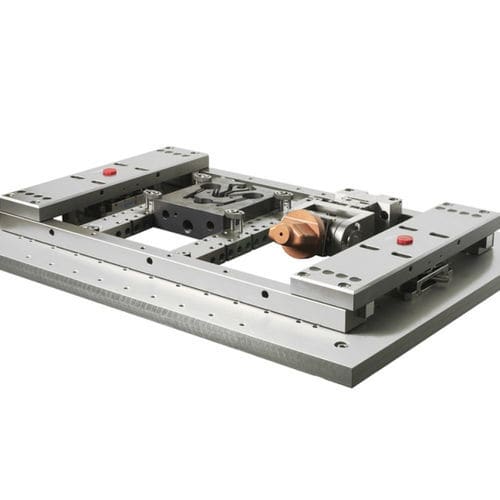

Machining tool holder

modularEDMworkpiece

The modular tooling system for WEDM The EROWA Wire EDM tooling system frees up your valuable WEDM machines from unproductive setting-up and preparation times. The well-thought-out combination of vises, clamping elements and clamping beams enables you to clamp all conceivable workpieces in an appropriate manner. The repeatability of the Wire EDM tooling system allows for presetting outside the machine and for safe automatic loading operations. The right equipment for every application The EROWA flat chucks on the machine table constitute the flexible interface with the workpiece carriers. The EROWA Wire EDM tooling system is suitable for single palletization or multiple palletization in a clamping frame. Everything fits There are suitable and flexible clamping elements for every size and type of workpiece. The workpiece to be machined is attached to the clamping elements with brackets. Special workpiece mount The Prisma clamping element for cylindrical parts: fitted to the pendulum holder, the workpiece can then be adjusted in three axes. Clamping frames for different workpieces Multiple palletization in a clamping frame: the workpieces to be machined are fitted to the clamping beams, which are individually arranged in the clamping frame. In this way, workpieces of different dimensions are positioned in the same clamping frame, and various jobs can be completed in the same clamping frame. The machine remains productive While the next job is prepared, the machine remains productive. The set-up work is carried out in optimal surroundings and without any time pressure.
