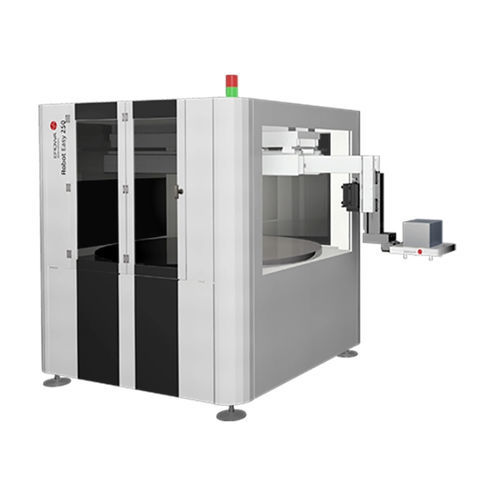

Robotic loading cell Easy 250

machining

High performance on little floor space The EROWA Robot Easy 250 provides many useful and innovative functions on little floor space at an attractive purchasing price. The Robot Easy can also easily be integrated with existing machines to boost their productivity. Up to 250kg transfer weight Its solid design ensures flawless pallet exchanges. Workpieces with a maximum weight of 250kg can be safely and reliably loaded onto the machine tool. Suitable for large workpieces Depending on the pallet size, the magazine can be configured for 4 to 60 magazine positions to suit your own requirements. Large workpieces measuring L 500mm x B 500mm x H 400mm can also be accommodated by the magazine. Fast commissioning Thanks to its compact monobloc design, the Robot Easy can be positioned beside the machine and made operational in a short period of time. The Robot Easy is suitable for lateral or frontal machine tool loading. Long range Depending on the workpiece size, there is a choice of two different transfer axes. The transfer axis for EROWA's system sizes PC210, UPC and MTS has a range of 2100mm from the Robot's outer edge. The "light axis" for EROWA's system sizes ITS 50/72, ITS 115/148 and PalletSet W (up to 40kg transfer weight) has a range of 1600mm. User-friendly setting-up While the machine is doing productive work, further workpieces can be set up for machining. A central set-up station with the EROWA Lift facilitates the operator's day-to-day work to a considerable extent. Prepared for JMS 4.0 Work really becomes enjoyable once the machine and the Robot are controlled through the EROWA JMS 4.0 process control system.
