Robotic loading cell Dynamic 500

machining

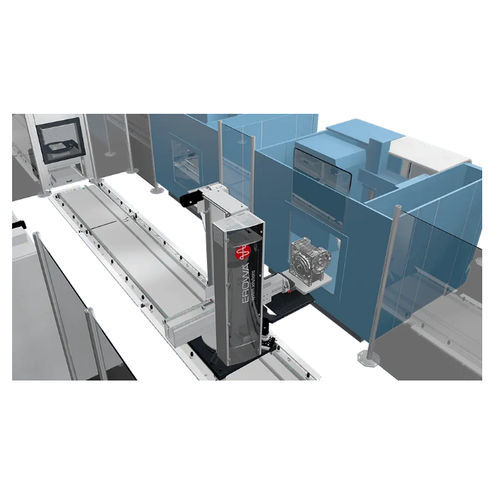

Automation for heavy parts The EROWA Robot Dynamic 500 is a flexible loading device for serve processing machines with large and heavy as well as small and light workpieces. The transfer unit can be equipped with one or more magazines; and on a rail up to 30 m long it becomes the "EROWA Robot Dynamic 500 Linear" and loads up a dozen machines. Up to 500 kg transfer weight Palletized workpieces of up to 500kg in weight and, for instance, 800×800×500mm in size can be loaded onto the machine tool safely and with precision. Besides the focus on heavy workpieces, the robot can also reliably transport lightweight pallets. Exchange gripper system The EROWA Robot Dynamic 500 has an exchange gripper system with which EROWA pallet and system sizes can be handled. The robot switches to the relevant system according to the jobs it has been assigned. This means that there are no obstacles in the way of mixed and flexible manufacture. The increase on effectiveness with this flexibility is astounding Modularly extendable at any time Do you need more magazine positions? Do you want to serve a second machine? Do you want to integrate a measuring machine or a loading station? No problem: the robot system can be adapted to current requirements at any time and be modularly extended to a rail length of 30m. Suitable magazine positions Magazines are available as rack and rotary versions which can be configured for all EROWA tooling system pallets. While rack magazines are suitable for large and heavy pallets, rotary magazines provide ample storage positions for smaller workpieces.
