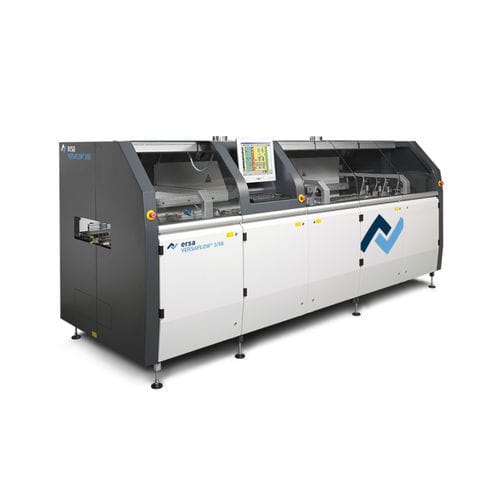

Modular selective soldering machine VERSAFLOW 3/66

flexiblefor electronic componentsfor PCB

Modularity for highly flexible selective soldering of XL boards Highest throughput in the entire selective soldering market Most sold selective machine platfoem worldwide Safe process control with monitoring of all relevant parameters ­Full modularity - suitable for every customer requiremen Dimensions Length: 2.950 mm Width: approx. 1.900 mm Height: approx. 1.650 mm Conveyor support Pin chain transport or roller transport PCB width: 63,5-610 mm PCB length: 127-610 mm Maximum PCB build-up at the top up to 120 mm Maximum PCB build-up at the bottom up to 60 mm (30 mm with z-variable modules) Maximum PCB weight: 5 kg (optional 15 kg) Flux module / Preheat module / Solder module Fluxer: Drop-Jet in different sizes Preheater: IR radiator heating, convection or combination of IR and convection Soldering module: Electromagnetic solder pot 3 module with up to 6 pots, solder volume 13 kg/pot
