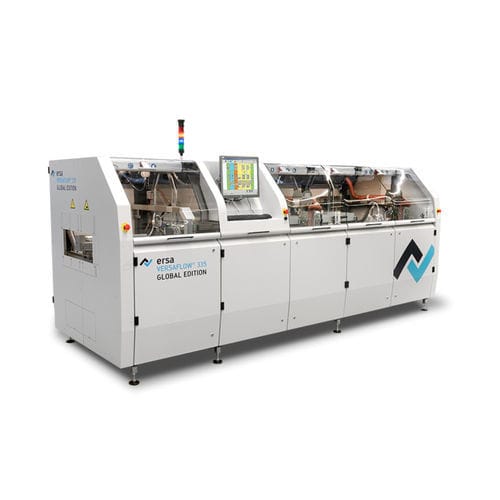

Electronic component selective soldering machine VERSAFLOW 3/35 GLOBAL EDITIONfor PCBfor PCB
Add to favorites
Compare this product
Characteristics
- Applications
- for electronic components, for PCB
- Other characteristics
- for PCB
Description
Configured soldering machines with the world´s leading selective technology
Highest throughput in the entire selective soldering market
Most sold selective machine platform worldwide
Safe process control with monitoring of all relevant parameters
Full modularity - suitable for every customer requirement
Dimensions ELITE (plus)
Length: 2.450 mm
Width: approx. 1.750 mm
Height: approx. 1.650 mm
Pin chain transport or roller transport
PCB width: 60-508 mm
PCB length: 120-508 mm
Maximum PCB build-up at the top up to 120 mm
Maximum PCB build-up at the bottom up to 30 mm
Maximum PCB weight: 8 kg
Flux modu / Preheat modul / Solder module
Fluxer: Drop-Jet 130 µm stainless steel
Preheater: combination of IR and convection
Soldering model: Electromagnetic solder pots
