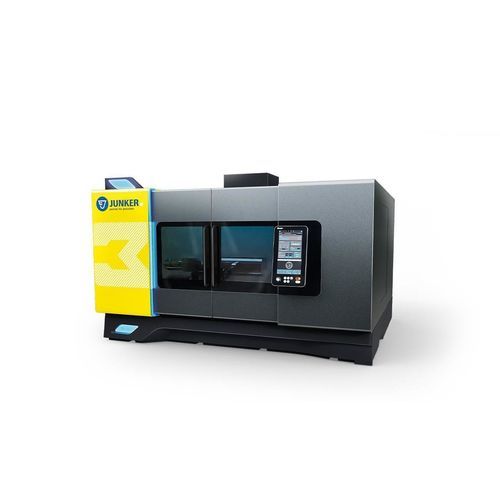

External cylindrical grinding machine JUNICOR series

cylindricalfor shaft3-spindle

Overview
The JUNICOR cylindrical corundum grinding machine (platform 3) is a modular solution for precision diameter and face grinding of shafts and similar components. Configurable in the 3S and 3L platforms, it supports small to medium production runs and frequent changeovers with reduced setup time.

Highlights

• Modular machine concept for configurable production layouts
• Short delivery and cycle times for single machines and complete solutions
• Guaranteed spare-part availability
• Optimized uptime through reduced service and repair times
• Component flexibility enabling fast retooling for subsequent product cycles
• Thermal stability for consistent dimensional accuracy
• High rigidity from robust construction
• Fast commissioning via integrated peripherals
• Advanced operator interface and software
• Operator- and maintenance-friendly machine platform
• Compact layout requiring less floor space

Grinding process descriptions
On platform 3 the JUNICOR performs precise diameter and face grinding, including angular plunge-cut grinding for turbocharger shafts and other high-precision shaft parts.

Special solutions

• Wheelhead - Multiple wheelhead and table configurations are available, from standard assemblies to custom solutions adapted to specific part geometries and production requirements.
• Wheelhead variants - Variants with up to three grinding spindles increase process flexibility and enable multi-operation sequences.

Technical data (selected platforms)
JUNICOR 3S
Grinding length: max. 800 mm
Clamping length: max. 800 mm
Component weight: max. 250 kg
Grinding wheel diameter: 508/610 mm
WxDxH (without peripherals): 3,250 x 2,600 x 2,200 mm

JUNICOR 3L
Grinding length: max. 1,600 mm
Clamping length: max. 1,600 mm
Component weight: max. 250 kg
Grinding wheel diameter: 508/610 mm
WxDxH (without peripherals): 4,050 x 2,600 x 2,200 mm

Equipment and options

• Machine bed - Mineral-cast bed for damping, torsional rigidity and thermal stability.
• Clamping fixture - Patented 3-point mounting interface for fast mounting and centring of grinding wheels, dressing tools and workholding devices; tailstock/workhead adjustment via chain wheel, hydraulic cylinder or CNC rack-and-pinion axis; optional airlift.
• Longitudinal positioning - Touch probe measures axial position to compensate blank length variations; values are integrated automatically by the control system.
• Steadies - Optional self-centering three-point steadies with tracking hydraulic jaws provide stable support and balanced force distribution.

Workpieces

• Turbocharger shafts
• Turbine shafts

Product brochures
Product brochures are available in multiple languages, including English and German.

Technical specifications

• Series name: JUNICOR
• Available platforms: 3S, 3L
• Grinding material: Corundum
• Machine concept: Modular, platform 3
• Applications: Small to medium production runs; versatile materials
• Options: Multiple wheelhead variants (up to three grinding spindles); various clamping systems; touch probe longitudinal positioning; self-centering steadies
