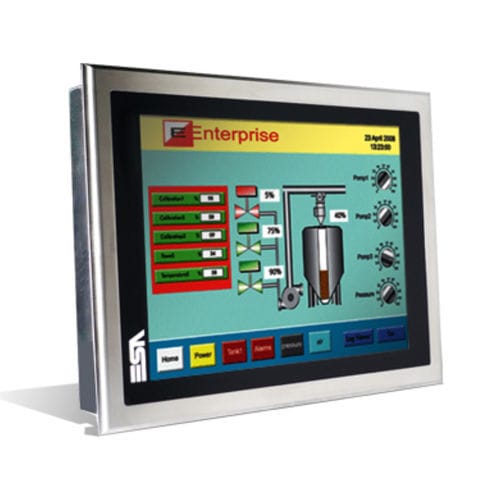

Resistive touch screen XM7 series

19"7"15"

Overview

• The XM7 Inox series industrial touchscreen monitors provide stainless-steel front bezels and robust design for operation in harsh environments, available in sizes from 7" wide to 19" with 4:3 LCD panels and LED backlight.

Main features

• Stainless steel front bezel (Inox V2A), 6 mm thickness
• True-Flat resistive touchscreen (4- or 5-wire depending on model)
• 4:3 LCD panels with LED backlighting
• Multiple video inputs: VGA, DVI-I, S-Video, composite
• Multi outputs for touch: RS232 and USB; front USB protected on selected models
• Front protection: IP69K (7" and 12.1") and IP66 (15" and 19")
• Certifications: CE, ATEX (Group II Category 3 G/D Zone 2/22) and compliance with EN60068 and EN61000 series

Models and technical data
Models: XM7W7 | XM712 | XM715 | XM719
Display sizes: 7" wide | 12.1" | 15" | 19"
Bezel: Inox V2A, 6 mm
Resolution range: 800 x 480 up to 1280 x 1024 (model dependent)
Brightness: 350–500 cd/m2 (model dependent)
Touch: analog resistive 4-wire (7") or 5-wire (other sizes)
Power supply: 18…30 Vdc (max 50 W)
Power consumption: 30–45 W (model dependent)

Technical specifications

• LED backlight lifetime: approx. 50,000 hours (at 25 °C)
• Viewing angle: up to 170°/170° (H/V depending on model)
• Operating temperature: 0…+50 °C; Storage: -20…+65 °C
• Humidity: up to 90%
• Weight: from 3 kg (7") to 10.5 kg (19")
• Interfaces: RS232, USB (front IP66 on selected models), VGA/DVI-I, S-Video, composite video
• Protection and certifications suited to industrial and food/pharma environments
