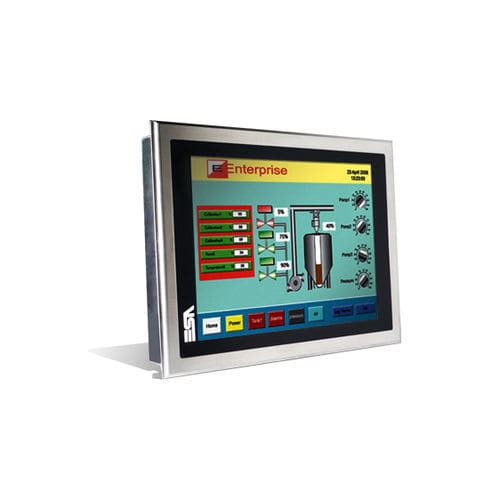

Resistive touch screen panel PC XS7 series

TFT LCDLED backlightwith touch screen

Overview
XS7 Inox Panel IPC pairs a 6 mm seamless stainless-steel front bezel with industrial-grade components to deliver configurable panel PCs for harsh environments. Available in 12.1", 15" and 19" sizes with True-Flat touch screens and multiple CPU/storage options.

Short description
Durable, configurable panel PC family with removable HDD/SSD and optional RAID. INOX front bezel and True-Flat touch make these units suitable for industrial automation, food & beverage, marine and other demanding applications.

Features

• Touch screen sizes: 12.1" to 19".
• 6 mm seamless stainless steel front bezel with True-Flat touch; no LED/USB on front.
• High configuration flexibility: removable HDD/SSD, mSATA/CFast/CF options, PCI/PCIe expansion.
• CPU options: Atom (fanless), Celeron (fanless) and Intel® Core (iCore 2G / 6G) variants.
• RAID support (2x HDD) and removable drives for maintenance.
• I/O: RS232 (2x), RS485 (1x), rear USB 2.0/3.0, 2x 1Gb Ethernet, DVI/VGA/HDMI per CPU selection.

Technical table — XS7 Dinamic iCore (models: XS712 / XS715 / XS719)
Display Size — XS712: 12.1" SVGA / XGA; XS715: 15"; XS719: 19"
Bezel in Stainless steel — 6 mm smooth seamless inox frame with True-Flat touch; no front LED/USB
True-flat Touch screen — front true-flat surface (no frontal LED/USB)
Technology — TFT; Colors — 16.7M; Backlight — LED; Life — 50,000 h (typical)
Resolution — XS712: 800x600 (SVGA) / 1024x768 (XGA); XS715: 1024x768; XS719: 1280x1024
Touch Type — Analog resistive (5 wires)
CPU — Intel® Core variants (iCore 2G / 6G) up to options indicated; RAM up to 16GB DDR3 (2G) or up to 32GB DDR4 (6G)
Chipset / DMI — QM67PCH / Q170; DMI 5GT/s / DMI3 8GT/s (6G)
Storage (opt.) — removable HDD/SSD, min. 500 GB SATA 2.5" or SSD options; mSATA / CFast / CF available depending on model
Slots — PCI / 2x PCI / PCIe x1 / PCIe x16 (options); mPCIe (iCore 6G) 2x
Serial / USB / Ethernet — RS232: 2x; RS485: 1x; USB rear (2.0/3.0): 4/0 (iCore 2G) - 0/4 (iCore 6G); Ethernet: 2x 1Gb RJ45 (Intel variants)
Video / Audio — DVI-D / VGA (iCore 2G) or DVI-D / HDMI (iCore 6G); MIC IN + Line IN + Line OUT as per variant
External (W x H x D mm) — XS712: 336 x 256 x 81; XS715: 425 x 300 x 85.5; XS719: 508 x 384 x 92.5
Cut-out (W x H mm) — XS712: 320 x 240; XS715: 393 x 275; XS719: 477 x 355
Power supply / Consumption — 18...30 Vdc; max power: XS712 75 W, XS715 85 W, XS719 95 W; consumption ranges depend on CPU and config
Protection / Environment — Protection: IP69K (XS712) or IP66 frontal (XS715/XS719); Operating temp: 0…+50 °C; Storage: -20…+65 °C; Humidity up to 90%
Weight (approx.) — XS712 ~5 kg; XS715 ~6.5 kg; XS719 ~11 kg
Certifications — CE; ATEX 2014/34/UE Group II Cat.3 G D Zone 2/22; EN 60068 series; EN 61000-6-2 / EN 61000-6-4

Technical table — XS7 Fanless (models: XS712 / XS715 / XS719)
Display Size — XS712: 12.1" SVGA / XGA; XS715: 15"; XS719: 19"
Bezel in Stainless steel — 6 mm seamless inox frame with True-Flat touch; no front LED/USB
Technology — TFT; Colors — 16.7M; Backlight / Lamp life — LED / 50K hours
Resolution — XS712: 800x600 / 1024x768; XS715: 1024x768; XS719: 1280x1024
Touch Type — Analog resistive (5 wires)
CPU (fanless) — Atom Dual Core N2800 or Celeron J1900 (config-dependent)
RAM — Atom: up to 4GB DDR3; Celeron: up to 8GB DDR3L (varies by model)
Drives — min. 500 GB SATA 2.5" / SSD 16 GB / CF options (Atom) or CFast/mSATA for Celeron
I/O — RS232: 2x; RS485: 1x; USB rear: 4/0 (Atom) - 3/1 (Celeron); Ethernet: 2x 1Gb (platform-dependent)
Slots / Expansion — PCI / PCIe / miniPCIe / mPCIe options; Wi‑Fi via PCI/PCIe/mPCIe optional
Power / Protection — 18...30 Vdc; consumption lower for fanless Atom variants (e.g. 36 W for XS712 Atom); Protection: IP69K (XS712) or IP66 front (XS715/XS719)
Operating / Storage — 0…+50 °C / -20…+65 °C; Humidity up to 90%
Certifications — CE; ATEX 2014/34/UE; environmental and EMC standards

Specifications

• Product family: XS7 Inox Panel IPC with 6 mm stainless steel front bezel.
• Display sizes: 12.1", 15", 19" with True-Flat analog resistive 5-wire touch.
• Display: TFT, 16.7M colors, LED backlight (typ. 50,000 h).
• CPU options: Atom, Celeron (fanless) and Intel® Core (iCore 2G / 6G).
• Memory: 4GB–32GB depending on platform and model.
• Storage: removable 2.5" SATA HDD/SSD, mSATA/CFast/CF options; RAID support available.
• I/O and expansion: serial ports, multiple USB 2.0/3.0, dual Gigabit Ethernet, PCI/PCIe expansion slots.
• Protection: IP69K or IP66 frontal depending on model; operating temperature 0…+50 °C.
• Certifications: CE, ATEX and relevant environmental/EMC standards.
