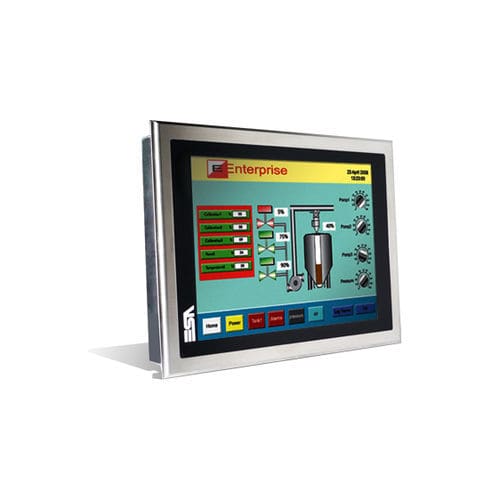

5-wire resistive touch screen HMI XS7 series

resistive touch screentouch screenwith touch screen

Overview
XS7 Inox Panel IPC provides top durability and performance. Thanks to the stainless steel finishes of the front bezel, XS7 Panel IPCs are the perfect solution for any industrial field.

Features

• Wide choice of touch screens from 12,1" to 19".
• Elegant and accurate industrial design, available with INOX stainless steel finishes for the front bezel.
• High configuration flexibility with HDD, SSD, mSATA/CFast, PCI/PCIe slot, CPU and RAM.
• Frontal true Flat touch screen.
• Removable HDD/SSD.
• RAID function.

Technical table - XS7 Dinamic iCore (XS712 / XS715 / XS719)
Display Size: XS712 – 12,1" SVGA / 12,1" XGA; XS715 – 15"; XS719 – 19"
Bezel in Stainless steel: 6 mm of smooth and seamless inox frame with True-Flat Touch screen. No LED / USB on the front
True-flat Touch screen: No LED/USB frontal (all models)
Technology: TFT (all models)
Colors: 16,7 M (all models)
Backlight: LED (all models)
Life (min. at 25 °C): 50.000 h (all models)
Resolution pixel: XS712 – 800x600 (SVGA) / 1024x768 (XGA); XS715 – 1024 x 768; XS719 – 1280 x 1024
Touch screen Type: Analog resistive (5 wires) (all models)
CPU (Fan Intel® Core™ 2G / 6G variants): up to 16GB DDR3 SODIMM 204pin Dual Channel 1066/1333 MHz (2G); up to 32GB DDR4 SODIMM 1866/2133MHz 260 pin (6G)
Chipset: QM67PCH / Q170 (all models)
DMI: DMI 5GT/s - DMI3 8GT/s (I-Core 6G) (all models)
RAM (Fan Intel® Core™) 2G: up to 16GB DDR3 SODIMM 204pin Dual Channel 1066/1333 MHz (all models)
RAM (Fan Intel® Core™) 6G: up to 32GB DDR4 SODIMM 1866/2133MHz 260 pin (all models)
Hard disk/SSD (opt.): min. 500 GB SATA 2,5" / SSD 16 GB (all models)
Internal Compact Flash Slots (opt.): 1 x (all models)
External Compact Flash Slots (opt.): 1 x (all models)
RS232 serial port: 2 x (all models)
RS485 serial port: 1 x (all models)
USB on rear (2.0/3.0): 4/0 (iCore 2G) - 0/4 (iCore 6G) (all models)
Ethernet (I-Core™) 2G: 2x 1Gb RJ45 Intel 82579LM / Realtek RTL8111DL (all models)
Ethernet (I-Core™) 6G: 2x 1Gb RJ45 Intel I210AT / I219LM (all models)
PS/2 keyboard/mouse port: 1x (I-core 2G) (all models)
PCI Slot (opt.): 1x PCI / 2x PCI / PCIe x1 / PCIe x16 (all models)
mPCIe slot: 2x (iCore 6G) (all models)
Wi-Fi card (opt.): PCIe (all models)
Video port: 1x DVI-D / VGA (iCore™ 2G) or 1x DVI-D / HDMI (iCore™ 6G) (all models)
Audio port: MIC IN + Line IN + Line OUT (Fan iCore™ 2G) (all models)
Ethernet ports RJ45: 2 x Ethernet 10/100/1000 Mbit Intel 82579 - RTL 8111 (all models)
External (W x H x D) (mm): XS712 – 336 x 256 x 81; XS715 – 425 x 300 x 85,5; XS719 – 508 x 384 x 92,5
Cut-out (W x H) (mm): XS712 – 320 x 240; XS715 – 393 x 275; XS719 – 477 x 355
Power supply (Vdc): 18...30 max 75 W (XS712); 18...30 max 85 W (XS715); 18...30 max 95 W (XS719)
Power consumption (W) (24 Vdc - basic config - NO PCI CARDS): 48/58 (XS712); 55/65 (XS715); 67/77 (XS719)
Protection level: XS712 – IP 69 K; XS715 – IP 66 on front; XS719 – IP 66 on front
Operating temperature (°C): 0...+50 (all models)
Storage temperature (°C): -20...+65 (all models)
Humidity: 90% (all models)
Weight (kg): ~5 (XS712); ~6.5 (XS715); ~11 (XS719)
Certifications: CE / ATEX 2014/34/UE directive Group II Category 3 G D Zone 2/22 / Environment EN 60068-2-6/27/30 / Immunity EN 61000-6-2 / Emissions EN 61000-6-4 (all models)
Optional kits: (not detailed)
RAID 2xHDD function: Yes (all models)
Removable HDD/SSD: Yes (all models)
DVD-RW: External (opt.) (all models)
Operating system: Win7 - Wes7 - XP Pro for Embedded - WIN8.1 - WIN10 (all models)

Technical table - XS7 Fanless (XS712 / XS715 / XS719)
Display Size: XS712 – 12,1" SVGA / 12,1" XGA; XS715 – 15"; XS719 – 19"
True-flat Touch screen: No LED/USB frontal (all models)
Bezel in Stainless steel: 6 mm of smooth and seamless inox frame with True-Flat Touch screen. No LED / USB on the front
Technology: TFT (all models)
Colors: 16,7 M (all models)
Backlight / Lamp life: LED / 50K hours (all models)
Resolution: XS712 – 800x600 (SVGA) / 1024x768 (XGA); XS715 – 1024 x 768; XS719 – 1280 x 1024
Touch screen Type: Analog resistive (5 wires) (all models)
CPU (Atom / Celeron options): Atom Dual Core 1,86 GHz N2800 or Intel Celeron Quad Core 2,00 GHz J1900 (all models)
Chipset (Atom): NM10; Chipset (Celeron): SoC (all models)
Graphic (Atom): Intel® GMA 3650; Graphic (Celeron): Intel® HD Graphics (all models)
DMI (Celeron): DMI 2,5 GT/s (all models)
RAM (Atom): Up to 4GB DDR3 SODIMM 204 pin; RAM (Celeron): Up to 8GB DDR3L 1333 MHz SODIMM 204 pin (all models)
Drives (internal) (Atom): min. 500 GB SATA 2,5" / SSD 16 GB / CF2GB; (Celeron): min. 500 GB SATA 2,5" / SSD 16 GB / CFast 4GB - mSATA 32 GB (all models)
CF / CFast (external): 1x CF (Atom) / 1x CFast (Celeron) (option) (all models)
RS232 serial port: 2 x (all models)
RS485 serial port: 1 x (all models)
USB on rear (2.0/3.0): 4/0 (Atom) - 3/1 (Celeron) (all models)
Ethernet ports RJ45: 2 x 1Gb Intel 82574 (Atom) / 2 x 1Gb Intel I210 (Celeron) (all models)
PCI / PCIe Slot (options): PCI / 2xPCI / PCIe x1 / PCIe x16 (all models)
Mini PCIe slot: 1x (all models)
Wi-Fi card (opt.): PCI / mPCIe / PCIe1x (all models)
VGA/DVI-D: 1/1 dimmable LCD backlit (Atom) (all models)
Audio port: Line-in + Line-out + Mic-in (Atom) / MIC IN + Line OUT (Celeron) (all models)
External (W x H x D) (mm): XS712 – 336 x 256 x 81; XS715 – 425 x 300 x 85,5; XS719 – 508 x 384 x 92,5
Cut-out (W x H) (mm): XS712 – 320 x 240; XS715 – 393 x 275; XS719 – 477 x 355
Power supply (Vdc): 18...30 max 75W (XS712); 18...30 max 85 W (XS715); 18..30 max 95 W (XS719)
Power consumption (W) (24 Vdc - basic config - NO PCI CARDS): 36 (XS712); 43 (XS715); 55 (XS719)
Protection level: XS712 – IP 69 K; XS715 – IP 66 frontal; XS719 – IP 66 frontal
Operating temperature (°C): 0...+50 (all models)
Storage temperature (°C): -20...+65 (all models)
Humidity: 90% (all models)
Weight (kg): ~5 (XS712); ~6.5 (XS715); ~11 (XS719)
Certifications: CE / ATEX 2014/34/UE directive Group II Category 3 G D Zone 2/22 / Environment EN 60068-2-6/27/30 / Immunity EN 61000-6-2 / Emissions EN 61000-6-4 (all models)

Caractéristiques / Spécifications techniques

• Product family: XS7 INOX stainless steel panel IPCs.
• Display sizes available: 12,1", 15", 19".
• True-flat touch screen with analog resistive 5-wire technology.
• Stainless steel front bezel: 6 mm seamless inox frame, no LED/USB on front.
• Panel technology: TFT with LED backlight, 16.7M colors, ~50,000 h lifetime.
• Multiple CPU options: Atom / Celeron / Intel Core (various generations and configurations supporting DDR3/DDR4 RAM up to 32GB depending on CPU).
• Storage: removable HDD/SSD, RAID 2xHDD optional, internal SATA/SSD/CF/CFast/mSATA options.
• Expansion: PCI / PCIe slots, mPCIe/mini PCIe, Wi-Fi card options.
• I/O: RS232 (2x), RS485 (1x), USB rear (2.0/3.0 varying by CPU), 2x 1Gb Ethernet, audio ports, video outputs (DVI-D/VGA/HDMI depending on CPU).
• Dimensions & cut-outs vary by model (see table per model).
• Power: 18...30 Vdc with model-dependent max power (75 W / 85 W / 95 W).
• Power consumption examples (24 Vdc, basic config): Dinamic iCore ~48/58 W (12.1"), ~55/65 W (15"), ~67/77 W (19"); Fanless lower values also specified.
• Protection: up to IP69K (12.1") or IP66 frontal (15"/19").
• Operating temperature: 0...+50 °C; storage: -20...+65 °C; humidity up to 90%.
• Weight approx.: 5 kg (12.1"), 6.5 kg (15"), 11 kg (19").
• Certifications: CE and ATEX (Group II Category 3 G D Zone 2/22) plus environmental and EMC standards as listed.
• Operating systems supported: various Windows Embedded and Windows versions (WES2009, XP Pro Embedded, Win7, WES7, Win8.1, Win10).
