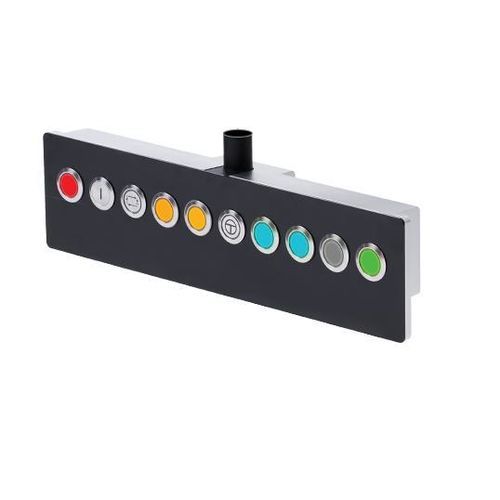

10-button push-button box PBOX LUMIA

IP65compactaluminum

Overview
The PB series comprises regulation and control devices with an anti-vandal structure. The Lumia Vesa PBOX is an enclosure designed to house up to 10 PBOX devices and is mounted at the bottom of Lumia Vesa monitors. It features a PVC front, aluminium rear and IP65 protection. Its compact, precision design supports integration in industrial control panels and HMI applications. Assembly is straightforward and can be performed by the end customer.

Key features

• Capacity for up to 10 PBOX devices
• Anti-vandal construction
• Compatible interface elements: buttons (with/without backlighting), selectors, emergency stop button, key selectors
• Available ports: USB, Ethernet
• Bottom mounting for Lumia Vesa monitors
• Customer-installable assembly
• Front material: PVC
• Rear material: aluminium
• Protection rating: IP65

Mechanical / dimensional data

• Dimensions (mm): 382 x 100 x 66.18
• Number of slots: 10
• Slot diameter (mm): 22.30
• Slot pitch (mm): 35.33

Applications

• Extension of control and regulation panels for Lumia Vesa monitors
• Industrial environments requiring anti-vandal interfaces and IP65 protection

Technical specifications

• Product line: PB series (regulation and control devices)
• Model / product name: Lumia Vesa PBOX
• Enclosure capacity: up to 10 PBOX devices
• Materials: front PVC, rear aluminium
• Protection rating: IP65
• Mounting: bottom of Lumia Vesa product
• Assembly: simple, customer-installable
• Available interface elements: buttons (with/without backlighting), selectors, emergency button, key selectors
• Available ports: USB, Ethernet
• Dimensions (mm): 382 x 100 x 66.18
• Number of slots: 10
• Slot diameter (mm): 22.30
• Slot pitch (mm): 35.33
