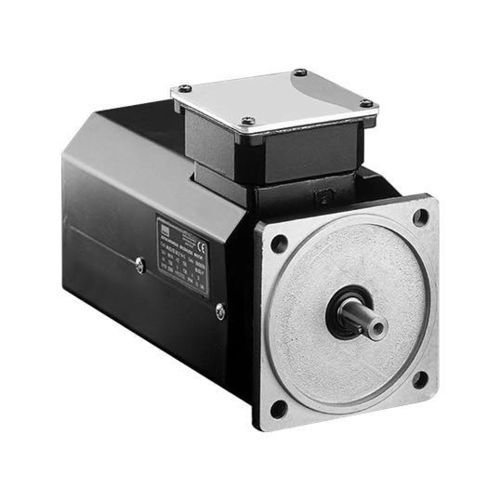

Asynchronous motor MVQ series

400 V330 V180 V

Product overview
The MVQ series asynchronous squirrel-cage motors are designed for automation applications that do not require high dynamic performance, offering an efficient AC alternative to conventional DC systems. Models cover a range of nominal torques and voltages for general industrial motion tasks.

Features

• Design: Squirrel-cage rotor
• Rated voltage: 180 Vac and 330 Vac
• IP protection
• Standard protection: IP 44 without fan; IP 21 with fan; IP 54 on request
• Insulation class: F
• Operating temperature: -25°C to +55°C
• Storage temperature: -25°C to +70°C
• Cooling: Natural cooling or forced ventilation
• Position feedback: 4-pole resolver
• Bearings: Sealed, lifetime-lubricated
• Shaft: Keyway and standard threaded hole
• Finish: Black coating
• Thermal protection: PTC, threshold 130°C
• Flange options: B5 and B14

Technical data - Motor types

• 9MMVQ6330214x — Nominal torque: 2.5 Nm; Peak torque: 5 Nm; Continuous current: 3.5 A; Nominal speed: 3000 rpm; Torque constant: 0.71 Nm/A; Rotor inertia: 400 x10-6 kg·m²; Weight: 6.5 kg; Drive voltage: 230 Vac
• 9MMVQ6330414x — Nominal torque: 2.8 Nm; Peak torque: 7 Nm; Continuous current: 1.6 A; Nominal speed: 3000 rpm; Torque constant: 1.75 Nm/A; Rotor inertia: 400 x10-6 kg·m²; Weight: 6.5 kg; Drive voltage: 400 Vac
• 9MMVQ7130219x — Nominal torque: 5.5 Nm; Peak torque: 11 Nm; Continuous current: 6 A; Nominal speed: 3000 rpm; Torque constant: 0.91 Nm/A; Rotor inertia: 1800 x10-6 kg·m²; Weight: 9.7 kg; Drive voltage: 230 Vac
• 9MMVQ7130419x — Nominal torque: 5.8 Nm; Peak torque: 14 Nm; Continuous current: 2.5 A; Nominal speed: 3000 rpm; Torque constant: 2.32 Nm/A; Rotor inertia: 1800 x10-6 kg·m²; Weight: 9.7 kg; Drive voltage: 400 Vac
• 9MMVQ8030219x — Nominal torque: 8 Nm; Peak torque: 16 Nm; Continuous current: 8.7 A; Nominal speed: 3000 rpm; Torque constant: 0.92 Nm/A; Rotor inertia: 3500 x10-6 kg·m²; Weight: 13.6 kg; Drive voltage: 230 Vac
• 9MMVQ8030419x — Nominal torque: 9.5 Nm; Peak torque: 24 Nm; Continuous current: 4.2 A; Nominal speed: 3000 rpm; Torque constant: 2.27 Nm/A; Rotor inertia: 3500 x10-6 kg·m²; Weight: 13.6 kg; Drive voltage: 400 Vac
• 9MMVQ9030424x — Nominal torque: 13 Nm; Peak torque: 30 Nm; Continuous current: 7.5 A; Nominal speed: 3000 rpm; Torque constant: 1.6 Nm/A; Rotor inertia: 5000 x10-6 kg·m²; Weight: 18.25 kg; Drive voltage: 400 Vac
• 9MMVQ0030428x — Nominal torque: 22 Nm; Peak torque: 55 Nm; Continuous current: 13.5 A; Nominal speed: 3000 rpm; Torque constant: 1.6 Nm/A; Rotor inertia: 8000 x10-6 kg·m²; Weight: 26.5 kg; Drive voltage: 400 Vac
• 9MMVQ1230428x — Nominal torque: 29 Nm; Peak torque: 71 Nm; Continuous current: 18 A; Nominal speed: 3000 rpm; Torque constant: 1.56 Nm/A; Rotor inertia: 11500 x10-6 kg·m²; Weight: 34.5 kg; Drive voltage: 400 Vac

Technical specifications

• Series: MVQ series
• Design: Squirrel-cage rotor
• Rated voltage: 180 Vac and 330 Vac
• IP protection: IP 44 without fan, IP 21 with fan, IP 54 on request
• Insulation class: F
• Ambient temperature range: -25°C to +55°C
• Storage temperature range: -25°C to +70°C
• Cooling: Natural cooling and forced ventilation
• Resolver: 4-pole resolver
• Bearings: Sealed, lifetime-lubricated
• Shaft: Keyway and standard threaded hole
• Finish: Black coating
• Thermal protection: PTC, threshold 130°C
• Flange options: B5 and B14
