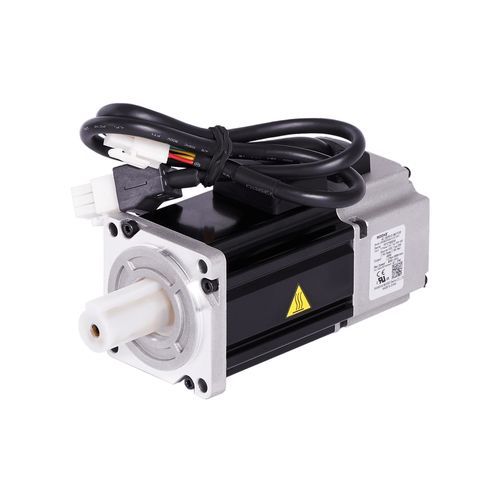

AC servomotor EWML series

with brakecompactIP65

Product
Low-inertia servomotor series EWML, available in three flange sizes and power ratings for compact motion applications.

Overview
EWML servomotors feature a simple construction and an optional brake, offering economical integration with commonly used gearboxes. They are supplied with a standard incremental encoder and designed for IP65 protection in confined industrial environments.

Features

• Integrated in MINIECO with 230Vac power supply
• Three sizes: 100 W (EWML2040), 400 W (EWML2060), 750 W (EWML2080)
• Standard incremental encoder 2500i
• Protection rating IP65

Technical table
MODEL: EWML2040EDx00 | EWML2060EDx00 | EWML2080EDx00
Rated output power: 100 W | 400 W | 750 W
Rated speed: 3000 rpm (all models)
Max mechanical speed: 6000 rpm (all models)
Rated torque: 0.32 Nm | 1.27 Nm | 2.4 Nm
Peak torque: 0.93 Nm | 3.8 Nm | 6.9 Nm
Inertia: 0.0428 kg·cm² | 0.272 kg·cm² | 0.89 kg·cm²
Flange: 40 mm | 60 mm | 80 mm
Length: 109 mm | 125 mm | 131 mm
Dimensions [Flange / Interaxis / Centering] (mm): F.40 x I.46 x C.30 | F.60 x I.70 x C.50 | F.80 x I.90 x C.70
Shaft dimensions [DxL] (mm): 8 x 25 | 14 x 30 | 19 x 40
Motor mass: 0.55 kg | 1.4 kg | 2.6 kg
Operating temperature: 0°C to 40°C
Storage temperature: -20°C to 80°C
Humidity (operating & storage): 10 to 85% RH or less
Maximum altitude: lower than 1000 m
Vibration resistance: 49 m/s²
Rotor poles: 8
Insulation class: B (130°C)
Enclosure rating: IP65

Technical specifications

• Series / Models: EWML series — EWML2040EDx00, EWML2060EDx00, EWML2080EDx00
• Rated output power: 100 W (EWML2040), 400 W (EWML2060), 750 W (EWML2080)
• Rated speed: 3000 rpm (all models)
• Maximum mechanical speed: 6000 rpm (all models)
• Rated torque: 0.32 Nm | 1.27 Nm | 2.4 Nm (by model)
• Peak torque: 0.93 Nm | 3.8 Nm | 6.9 Nm (by model)
• Rotor poles: 8
• Inertia: 0.0428 kg·cm² | 0.272 kg·cm² | 0.89 kg·cm² (by model)
• Flange sizes: 40 mm | 60 mm | 80 mm
• Overall length: 109 mm | 125 mm | 131 mm (by model)
• Dimensions (Flange / Interaxis / Centering) (mm): F.40 x I.46 x C.30 | F.60 x I.70 x C.50 | F.80 x I.90 x C.70
• Shaft dimensions [DxL] (mm): 8 x 25 | 14 x 30 | 19 x 40 (by model)
• Motor mass: 0.55 kg | 1.4 kg | 2.6 kg (by model)
• Standard encoder: Incremental encoder 2500i
• Protection / Enclosure rating: IP65
• Insulation class: B (130°C)
• Operating temperature range: 0°C to 40°C
• Storage temperature range: -20°C to 80°C
• Humidity (operating & storage): 10 to 85% RH or less
• Maximum recommended altitude: lower than 1000 m
• Vibration resistance: 49 m/s²
• Integration: Integrated in MINIECO with 230Vac power supply
