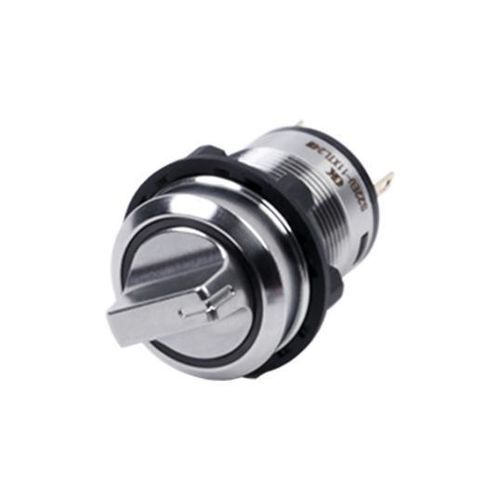

Selector push-button switch PB series
key lockmushroomemergency stop

Selector push-button switch - PB series - ESA elettronica - key lock / mushroom / emergency stop
Selector push-button switch - PB series - ESA elettronica - key lock / mushroom / emergency stop
Selector push-button switch - PB series - ESA elettronica - key lock / mushroom / emergency stop - image - 2
Selector push-button switch - PB series - ESA elettronica - key lock / mushroom / emergency stop - image - 3
Selector push-button switch - PB series - ESA elettronica - key lock / mushroom / emergency stop - image - 4
Selector push-button switch - PB series - ESA elettronica - key lock / mushroom / emergency stop - image - 5
Selector push-button switch - PB series - ESA elettronica - key lock / mushroom / emergency stop - image - 6
Selector push-button switch - PB series - ESA elettronica - key lock / mushroom / emergency stop - image - 7
Selector push-button switch - PB series - ESA elettronica - key lock / mushroom / emergency stop - image - 8
Add to favorites
Compare this product

Characteristics

Type
emergency stop, mushroom, selector, key lock
Protection level
vandal-proof
Contact configuration
1 NO/NC
Other characteristics
panel-mount, illuminated, flat, LED-illuminated, red LED, multicolor LED, blue LED, green LED, with buzzer, white LED, with indicator light, ring, domed, momentary

Description

Overview
The PB series comprises control and regulation devices with a vandal‑proof construction designed for industrial control panels and compact installations. The PBOX range groups pushbuttons (with or without illumination), selector switches, emergency pushbuttons, key selectors, and integrated USB/Ethernet ports to simplify panel design.

Features
  • Compact, space-saving design: 32 mm height suitable for constrained panel depths.
  • Quick assembly and tool-free connections for faster installation.
  • Available in momentary or maintained action; with or without LED illumination.
  • Illumination variants: flat, convex or ring-shaped; multiple colors available.
  • Range includes pushbuttons, emergency switches, selector switches, key selector switches and buzzer variants.

  • Pilot lamps offered with annular or flat lenses in white, yellow, green, blue, red, and white-green.
  • Quick connection and simple wiring; no special tools required.
  • Slim, hygienic design for improved panel integration.

Product codes
DESCRIPTION | PRODUCT
PUSH BUTTON/BLACK/1NC/1NO | PB022X06C1N1000
PUSH-BUTTON/WHITE LIGHT/1NC/1NO | PB022XL1C1N1000
PUSH-BUTTON/YELLOW LIGHT/1NC/1NO | PB022XL2C1N1000
PUSH-BUTTON/GREEN LIGHT/1NC/1NO | PB022XL3C1N1000
PUSH-BUTTON/BLUE/LIGHT/2NO | PB022XL400N2000
PUSH-BUTTON/BLUE LIGHT/1NC/1NO | PB022XL4C1N1000
PUSH-BUTTON/RED LIGHT/1NC/1NO | PB022XL5C1N1000
PUSH-BUTTON/RING/WHITE/1NC/1NO | PB022XR1C1N1000
PUSH-BUTTON/RING/GREEN/1NC/1NO | PB022XR2C1N1000
PUSH-BUTTON/RING/YELLOW/1NC/1NO | PB022XR3C1N1000
PUSH-BUTTON/RING/BLUE/1NC/1NO | PB022XR4C1N1000
PUSH-BUTTON/RING/WHITE-GREEN/1NO/I | PB022XR700N1S02
PUSH-BUTTON/BUZZER/LIGHT | PBB22XL00000000
PUSH BUTTON/EMERGENCY/LIGHT/2NC | PBE22XL5C200000
COVER-PLUG | PBG22P000000000
ETHERNET PORT 50 CM | PBH22X000000050
ETHERNET PORT 5 M | PBH22X000000500
WHITE LIGHT INDICATOR | PBI22XL10000000
YELLOW LIGHT INDICATOR | PBI22XL20000000
GREEN LIGHT INDICATOR | PBI22XL30000000
BLUE LIGHT INDICATOR | PBI22XL40000000
RED LIGHT INDICATOR | PBI22XL50000000
KEY SELECTOR 2 POS/1NC/1NO | PBK22X00C1N1000
10X1/P.BUTTON-BOX ARM | PBOX11010000000
07X1/P.BUTTON-BOX/ST | PBOX110100000ST
07X1/P.BUTTON-BOX/ST | PBOX110100001ST
07X1/P.BUTTON-BOX/ST | PBOX110100002ST
1X1/P.BUTTONS-BOX PANEL | PBOX20110000000
5X2/P.BUTTON-BOX PANEL | PBOX20520000000
6X1/P.BUTTONS-BOX PANEL | PBOX20610000000
10X1/P.BUTTONS-BOX PANEL | PBOX21010000000
PB/SELECT/1NC/1NO/NO LIGHT | PBS22X00C1N101A
SELECTOR/2NO/WLIGHT-RING | PBS22XR100N2000
SELECTOR/1NC/1NO/WLIGHT-RING | PBS22XR1C1N1000
USB PORT 50CM | PBU22X000000050
USB PORT 5M | PBU22X000000500

Technical specifications
  • Vandal-proof construction suitable for regulation and control applications.
  • Compact size: height 32 mm for space-constrained installations.
  • Available actions: momentary or maintained.
  • Illumination options: none, LED (flat, convex) or ring-shaped.
  • Pilot lamp options: annular or flat lenses; multiple colors (white, yellow, green, blue, red, white-green).
  • Available product types: push buttons, emergency switches, selector switches, key selector switches, buzzer variants.
  • Integrated ports available: USB (50 cm, 5 m) and Ethernet (50 cm, 5 m).
  • Quick assembly and quick connection; simple wiring, no tools required.
  • Slim, elegant and hygienic design for improved panel integration.

Catalogs

No catalogs are available for this product.

See all of ESA elettronica‘s catalogs
