Panel-mount push-button switches

... in version Standard, lettered, with Point Illumination or Ring Illumination Assembly method: clip micro-switch into the saddle, secure switch using mounting nut Equipped with flat-pin plugs to ...

Sub-Miniature Push Button Switches Push button switches available with threaded bushing or snap in panel mounting. Operating force: 2N - 5N Contact ...

... made by Schlegel Schlegel control units stand for highest functionality and quality and for unique and multi-award winning design. As the link between human and machine, they are used in operator control panels ...

Category Membrane pushbuttons Series RONTRON-R-JUWEL Panel cut-out Ø 22.3 mm Degree of protection IP66 / IP69K Travel 1.5 mm Illumination yes With labelling option yes front bezel black Front ring black Operating ...

Anti-vandalism button, OFF- (ON) SPST Pushbutton Metallic, silver, red, yellow OFF- (ON) SPST Diameter: 12mm Max Intensity: 2A Max Voltage: 36V 2 Screw terminals

16mm. self reset pushbutton, 3 soder pin Flat Metal Pushbutton OFF-(ON) SPDT Diameter: 16mm Max Intensity: 3A Max Voltage: 250V 3 Solder Terminals

Anti-vandalism button, OFF- (ON) SPDT, LED 12V Flat metal pushbutton Available LED colors: Blue, White, Red, Green OFF- (ON) SPDT Diameter: 16mm Max Intensity: 3A Max Voltage: 250V Available LED voltage: 12V, ...

The modular push-buttons can be guarded or projecting. * Illuminated * Mounting diameter: 22mm * Operation: maintained * Possibility of marking symbols, if any.

The push-buttons metal bezel can be guarded and projecting. * Non-illuminated * Mounting diameter: 22mm * Operation: momentary * Possibility of marking symbols, if any.

The push-buttons metal bezel have a mushroom head and floating mushroom. * Non-illuminated * Mounting diameter: 22mm * Operator diameter: 40mm * Operation: momentary

DISTINCTIVE FEATURES recognized compact design great tactile feedback LED illumination versions momentary or latched 125mA @ 125 Vac specific wiring upon request specific marking upon request

Drilling diameter: 16 mm Waterproof to IP67 front panel Impact Resistance IK10 contact 1NO very robust stainless steel or aluminum body LED illuminated or not (mono color, bi-color, RGB)

Drilling diameter: 22 mm Waterproof to IP67 front panel Impact Resistance IK10 contact up to 2NO + 2NC very robust stainless steel body Large touch of 2 cm in diameter for easy operation LED illuminated or ...

... Maintained: 1,000,000 operations minimum Momentary: 1,000,000 operations minimum Selector/Keylock: 250,000 operations minimum Switch Unit: 2,000V AC, 1 min. between live/dead part and terminals of different poles; 1,000V ...

... Switches for cars,computers 2.Metal Switches for Medical,Food processing,Mining,Home automation 3.LED Switch for door entry system 4.Waterproof switch for car/vehicle

25mm Flush Panel Mounting Industrial Controls A range of 25mm flush panel mounting push buttons and matching indicators, ...

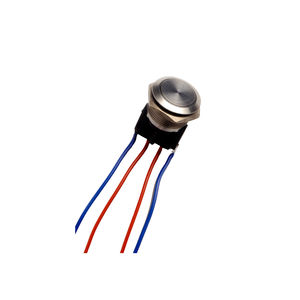

Double contact NO / NC isolated. Wire output Easy installation on existing plate (hole diam.19.2mm) Screwing from the rear nut supplied.
