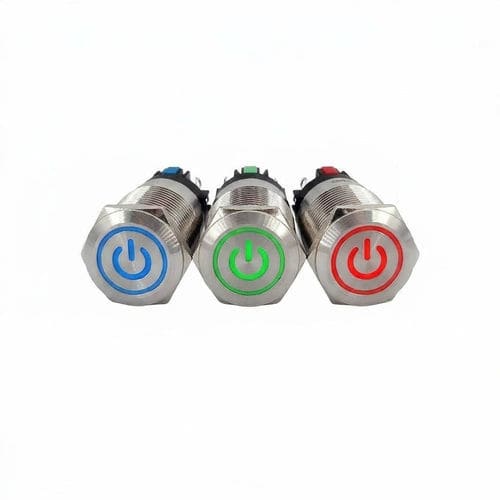

IP65 push-button switch CBP22D-1A-AP series

1 NO/NCpanel-mountmomentary

Overview
Vandal-resistant flush-mount push button Ø22 mm, body in stainless steel 304, flat head with engraved "Power" symbol. Model family CBP22D. Available in momentary (push) or maintained (latching) versions. Protection rating IP65. Screw-terminal connection. Designed for machine control, start/stop of equipment and visible control panels in industrial, commercial or public environments.

Electrical specifications

• Contact: 1NO + 1NC
• Switching current: 5 A / 230 V
• LED versions available at 24 V or 230 V depending on reference

Physical characteristics

• Mounting cut-out: Ø22 mm
• Maximum panel thickness: 11 mm
• Body: stainless steel 304
• Head: flat, engraved "Power" symbol
• Connection: screw terminals
• Protection rating: IP65 (dust tight and protected against water jets)

Sealing and resistance

• IP65 rating — suitable for outdoor installation and for humid or dusty environments

Applications

• Machine control and operator commands
• Start/stop of equipment
• Control panels, elevators, door locking systems, buses and industrial or commercial applications requiring a visible, vandal-resistant control

Variants and order codes
Order code | Function | Supply voltage | LED colour | Stock
CBP22D-1ACS-SMSP-AP24B | Maintained | 24 V AC/DC | Blue | in stock
CBP22D-1ACS-SMSP-AP24R | Maintained | 24 V AC/DC | Red | in stock
CBP22D-1ACS-SMSP-AP24G | Maintained | 24 V AC/DC | Green | in stock
CBP22D-1ACS-SMSP-AP230B | Maintained | 230 V AC | Blue | in stock
CBP22D-1ACS-SMSP-AP230R | Maintained | 230 V AC | Red | in stock
CBP22D-1ACS-SMSP-AP230G | Maintained | 230 V AC | Green | in stock
CBP22D-1ACM-SMSP-AP24B | Momentary | 24 V AC/DC | Blue | in stock
CBP22D-1ACM-SMSP-AP24R | Momentary | 24 V AC/DC | Red | in stock
CBP22D-1ACM-SMSP-AP24G | Momentary | 24 V AC/DC | Green | in stock
CBP22D-1ACM-SMSP-AP230B | Momentary | 230 V AC | Blue | in stock
CBP22D-1ACM-SMSP-AP230R | Momentary | 230 V AC | Red | in stock
CBP22D-1ACM-SMSP-AP230G | Momentary | 230 V AC | Green | in stock

Standards and compliance

• Compliances: CE, RoHS, REACH

Resources

• Technical documentation and product brochure available (data sheets and technical manuals related to control and signalling devices)

Technical specifications

• Product type: vandal-resistant flush-mount push button Ø22 mm
• Contacts: 1 NO + 1 NC
• Switching capacity: 5 A @ 230 V
• Mounting: flush in panel Ø22 mm, max panel thickness 11 mm
• Material: stainless steel 304 (body)
• Protection rating: IP65
• Connection: screw terminals
• LED options: colours available blue / red / green, voltages 24 V or 230 V depending on reference
• Versions: momentary (push) or maintained (latching)
