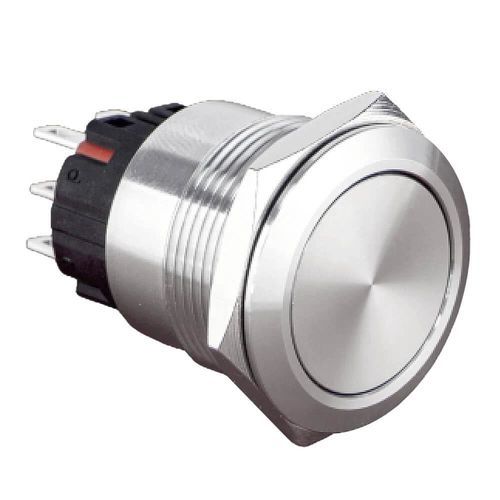

IK09 push-button switch CBP22-2CM series

IP65vandal-proof2 NO/NC

The CBP22-2CM push button combines design and durability: - **Electrical:** - Offered with momentary (push) or maintained (stable) function. - Contact 2x NO/NC 5A/230V. - LED lifespan minimum 40kh. - **Physical:** - Metal push button to be embedded in a **22mm diameter cutout**. Maximum panel thickness 8mm. - **Stainless steel body.** Self-extinguishing PA plastic base UL94-VO. - **Flat head shape.** - Protection rating IP65 and IK09. - **Tab output.** Pre-wired base optional for wire outputs. - Secured by metal nut. - Delivered with sealing gasket. - **Sealing:** - With its IP65 protection rating, this push button can be safely installed outdoors. - **Robustness:** - In addition to their modern and pleasant design, the metal body offers high "anti-vandalism" resistance. - **Available Variants:** - Variants available on request: - IP67 protection - Other colors - "Emergency stop" or "rotary switches" - Laser or luminous engraving - Rear sealing by resin injection - Other LED voltages - ... and many more ... - **Standards and Certifications:** - CE, RoHs, Reach. - **Accessories:** - Pre-wired base with wires of different lengths. - Nut tightening key. - **Variants and Order Codes:** - Order Code | Function | Supply Voltage | LED Color | Stocked Product - CBP22-2CS-TMSP | Maintained | None | No LED | instock - CBP22-2CS-TMSP-A24B | Maintained | 24 VAC/DC | Blue | instock - CBP22-2CS-TMSP-A24R | Maintained | 24 VAC/DC | Red | instock - CBP22-2CS-TMSP-A24G | Maintained | 24 VAC/DC | Green | instock - CBP22-2CS-TMSP-A230B | Maintained | 230 VAC | Blue | instock - CBP22-2CS-TMSP-A230R | Maintained | 230 VAC | Red | instock - CBP22-2CS-TMSP-A230G | Maintained | 230 VAC | Green | instock - CBP22-2CM-TMSP | Momentary | None | No LED | instock - CBP22-2CM-TMSP-A24B | Momentary | 24 VAC/DC | Blue | instock - CBP22-2CM-TMSP-A24R | Momentary | 24 VAC/DC | Red | instock - CBP22-2CM-TMSP-A24G | Momentary | 24 VAC/DC | Green | instock - CBP22-2CM-TMSP-A230B | Momentary | 230 VAC | Blue | instock - CBP22-2CM-TMSP-A230R | Momentary | 230 VAC | Red | instock - CBP22-2CM-TMSP-A230G | Momentary | 230 VAC | Green | instock - **Features / Technical Specifications:** - Cutout diameter: 22 mm - Max panel thickness: 8 mm - Body: stainless steel - Base: self-extinguishing PA plastic UL94-VO - Shape: flat head - Protection rating: IP65, IK09 - Contact: 2x NO/NC 5A/230V - LED lifespan: min 40,000 h - Output: tabs, pre-wired base optional - Securing: metal nut - Sealing gasket provided - Standards: CE, RoHS, Reach
