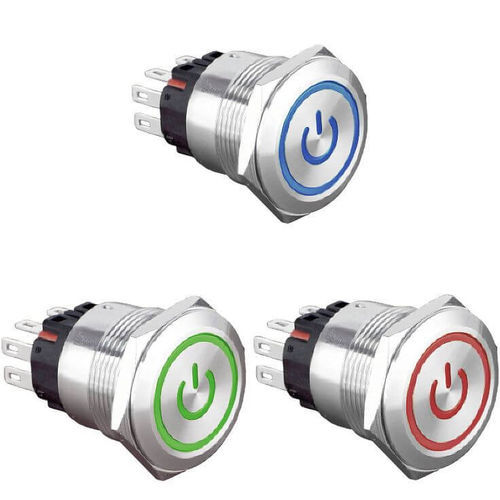

IK09 push-button switch CBP22-2CM-AP seriesvandal-proofIP652 NO/NC
Add to favorites
Compare this product
Characteristics
- Protection level
- IK09, vandal-proof, IP65
- Contact configuration
- 2 NO/NC
- Other characteristics
- red LED, blue LED, stainless steel, momentary, illuminated, green LED
Description
The CBP22-2CM-AP push button combines design and robustness:
- Electrical:
- Push button available with momentary (push) or maintained (stable) function.
- Contact 2x NO/NC 5A/230V.
- LED lifespan min 40,000h.
- Physical:
- Metal push button to be mounted in a 22mm diameter cutout. Max panel thickness 8mm.
- Stainless steel body. Plastic PA self-extinguishing UL94-VO base.
- Flat head shape.
- Protection rating IP65 and IK09.
- Tab output. Pre-wired base optional for wire outputs.
- Secured by metal nut.
- Supplied with sealing gasket.
- Sealing:
- With its IP65 protection rating, this push button can be safely installed outdoors.
- Robustness:
- In addition to its modern and pleasant design, the metal body offers high resistance of the "anti-vandal" type.
- Available variants on request:
- IP67 protection
- Other colors
- "Emergency stop" or "rotary switches" type
- Laser or illuminated engraving
- Rear sealing by resin injection
- Other LED voltages
- ... and many more ...
- Compliance:
- CE, RoHs, Reach.
- Accessories:
- Pre-wired base with wires of different lengths.
- Nut tightening key.
- Technical features / Specifications:
- Model: CBP22-2CM-AP
- Function: Momentary or maintained
- Contact: 2x NO/NC 5A/230V
- LED colors: Blue, Red, Green
- LED supply voltage: 24V AC/DC or 230V AC
- Mounting: 22mm diameter cutout, max panel thickness 8mm
- Body: Stainless steel
- Base: Plastic PA UL94-VO
- Head: Flat
- Protection: IP65 (optionally IP67), IK09
- Output: Tabs (optional pre-wired base)
- Accessories: Sealing gasket, nut, optional pre-wired base, tightening key
- Certifications: CE, RoHs, Reach
Ordering codes (examples):
Order Code | Function | Supply Voltage | LED Color | Stocked Product
---|---|---|---|---
CBP22-2CM-TMSP-AP24B | Momentary | 24V AC/DC | Blue | In stock
CBP22-2CM-TMSP-AP24R | Momentary | 24V AC/DC | Red | In stock
CBP22-2CM-TMSP-AP24G | Momentary | 24V AC/DC | Green | In stock
CBP22-2CM-TMSP-AP230B | Momentary | 230V AC | Blue | In stock
CBP22-2CM-TMSP-AP230R | Momentary | 230V AC | Red | In stock
CBP22-2CM-TMSP-AP230G | Momentary | 230V AC | Green | In stock
